Basic Info.
Structure
Vertical CNC Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Automatic Grade
Automatic
Certification
CE, ISO 9001
Transport Package
Poly-Wood Case
Specification
CE, SGS, ISO
Production Capacity
20 Sets Per Month
Product Description
Features:

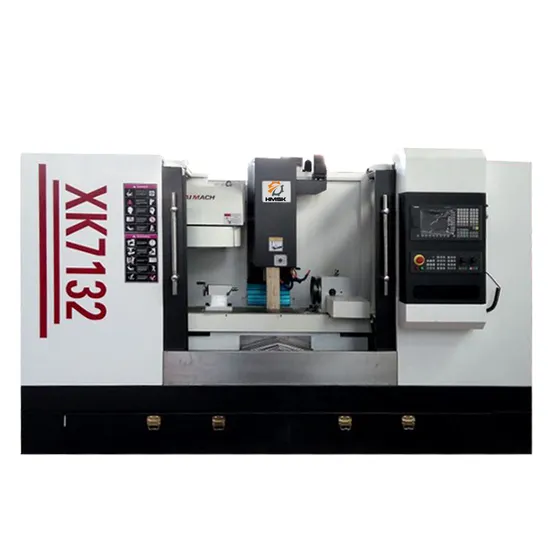

CNC milling machine:
BT30/NT30, servo motor
Function:drilling , tapping, chamfering, bearing, milling face thread, handle and tower
Aesthetic and elegant modeling.
High efficiency for automatic knife changing.
X/Y/Z axes adopt rectangular guide way,
The spindle frame is used in the lathe pedestal to increase its stability and stiffness.
The machine has a good rigidity and strong vibration resistance.
It has a good chip removal performance.
Main Technical Data:
Specification |
XH7132 |
Table size |
1500x330mm |
X/Y/Z axis travel |
900x450x500mm |
Spindle motor |
5.5kw servo motor |
Distance between spindle center and surface column | 500mm |
Spindle taper |
BT40 |
Machine controller |
GSK990, SIMENS 808D |
Rapid speed of X/Y/Z axis |
12m/min |
X/Y/Z way motor torque |
X/Y 8N/M Z10N/M |
Position precision |
0.02/300m |
Spindle speed |
20-8000rpm |
T-slot | 3-18-85 |
Table load |
500kgs |
Distance from spindle to table |
100-600mm |
Packing size |
2200x2100x2450 |
Full cover
Half cover
>>
