Kexint Xpon ONU Dual Band 3000Mbps Ax3000 WiFi6 ONU

Product Description

Product Description

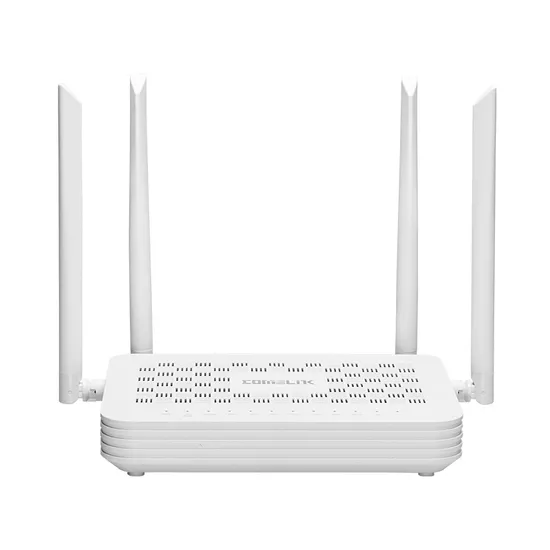

The AX3000 WIF6 ONU is a GPON optical terminal access device (AX3000Mbps) that is highly integrated with dual-frequency Wi-Fi6. It is the end-product of optical fiber for operators. It supports ultra-bandwidth access through GPON upstream technology and provides users with basic WIFI functions, routing, and gigabit Ethernet functions.
The upstream network ports of the UT-GP4491 are GPON ports. The downstream user ports include four GE electrical ports, one USB port, one TEL port, and AX3000 WiFi6 WLAN ports.
Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode, and upstream rates up to 1.244Gbps Fiber access and gigabit ports provide incredibly fast transfer speeds
Supports802.11AX,Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))
Supports OMCI (ONT Management Control Interface) and OAM remote management
Easy MESH function Detailed Photos Product Parameters

XPON Standards	ITU-T G.984.x and IEEE802.3ah
Chipset	5VT, 2518+MTK MT7916+MT7976
Interface	1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G)
Data Rates & Wavelength	Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
Distance	0~ 20Km Max
External Power Supply	DC 12V/1.5A
Dimensions (Length * Width * Height)	150mm×100mm×40mm
Weight (Full-Loaded)	≤0.5kg
Environmental Requirements	Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing

XPON Standards	ITU-T G.984.x and IEEE802.3ah
Chipset	5VT, 2518+MTK MT7916+MT7976
Interface	1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G)
Data Rates & Wavelength	Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
Distance	0~ 20Km Max
External Power Supply	DC 12V/1.5A
Dimensions (Length * Width * Height)	150mm×100mm×40mm
Weight (Full-Loaded)	≤0.5kg
Environmental Requirements	Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing

XPON Standards	ITU-T G.984.x and IEEE802.3ah
Chipset	5VT, 2518+MTK MT7916+MT7976
Interface	1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G)
Data Rates & Wavelength	Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
Distance	0~ 20Km Max
External Power Supply	DC 12V/1.5A
Dimensions (Length * Width * Height)	150mm×100mm×40mm
Weight (Full-Loaded)	≤0.5kg
Environmental Requirements	Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing

XPON Standards	ITU-T G.984.x and IEEE802.3ah
Chipset	5VT, 2518+MTK MT7916+MT7976
Interface	1 SC/UPC Port or 1 SC/APC Port4 10/100/1000Mbps RJ45 Port1 POTS Port 1 TEL PORT 1 USB WIFI (2.4G & 5.8G)
Data Rates & Wavelength	Upstream:1.244Gbps, 1310nmDownstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
Distance	0~ 20Km Max
External Power Supply	DC 12V/1.5A
Dimensions (Length * Width * Height)	150mm×100mm×40mm
Weight (Full-Loaded)	≤0.5kg
Environmental Requirements	Working temperature: 0°C~40°CStorage temperature: -40°C~70°CRelative humidity: 10%~90%, non-condensing
