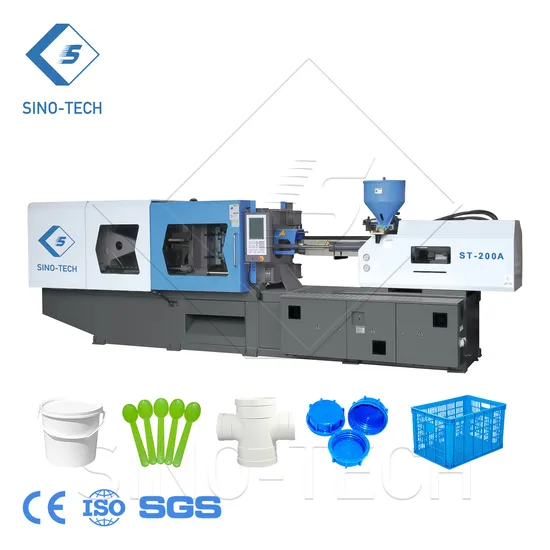

Full-Automatic High-Speed Small Plastic Injection Molding Machine Plastic Fork/Knife/Spoon Making Machine

Product Description

Full-Automatic High-Speed Small Plastic Injection Molding Machine Plastic Fork/Knife/Spoon Making Machine
Product Description
Product Parameters

Item		260SElll
Screw diameter	mm	55	60	70
Theoretical shot volume	cc	713	848	1155
Shot weight (PS)	g	649	772	1051
Shot weight (PS)	oz	22.9	27.3	37.1
Length/Diameter ratio	L/D	22.9	21	18
Injection pressure	MPa	211	178	131
Injection rate	cm³/sec	237	282	384
Injection stroke	mm	300
Max. Screw speed	rpm	175
Plasticizing capacity (PS)	g/s	32.3	35.2	52.9
Injection unit force	Ton	9.1
Carriage stroke	mm	350
Clamping force	Ton	260
Max. daylight	mm	1210
Clamping stroke	mm	600
Distance btwn. Tie bars	mm	580*580
Min mould dimension	mm	400*400
Mould thickness range	mm	195-610
Ejector force	Ton	11.1
Ejector stroke	mm	180
No. of ejector pins	unit	13
Max. motor power	kW	26.7
System pressure	MPa	17.5
Hydraulic pump capacity	L/min	172
No. of heater zones	unit	5+1
Heater input power	kW	18.9
Ultimate capacity	kw	46.6
Current	A	63.7
Net weight	Ton	8.55
Oil filling capacity	L	480

Detailed Photos



Application

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
