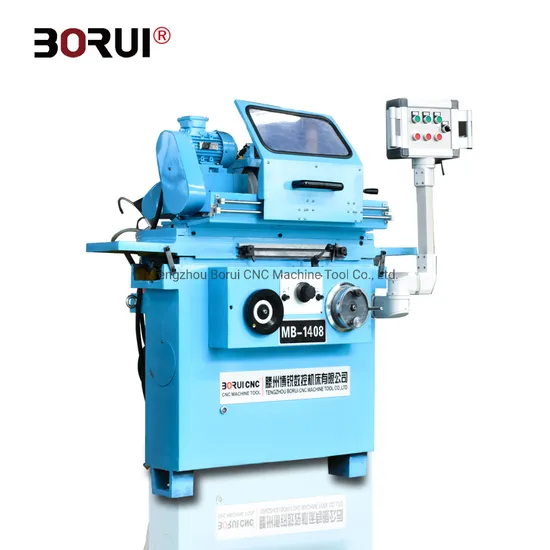

Semiautomatic High Pricision Universal Cylindrical Grinder M1408

Product Description

Semiautomatic High pricision Universal cylindrical grinder M1408 Product Description
Feature :
1, mainly used for grinding small shaft, circle, needle valve, plunger set of cylinder and cone surface2, tooling way available top, three jaw chuck, and special fixture of spring clip;3, apply to instrumentation, automotive electrical and mechanical, bearings, textile, Marine, sewingmachines, machinery and other industries processing small parts,4, suitable for tools, machine shop and workshop for medium and small batch production,5, the machine according to the top is divided into 300 mm.
Product Parameters

Model	Unit	M1308x300	M1408x300
Grinding Dia. (O.D)	mm	2-80	2-80/10-60
Grinding length (O.D)	mm	300	300/125
Center height	mm	115	115
Max.workpiece weight	kg	10	10
Worktable speed	m/min	0.1-4	0.1-4
Wheel peripheral velocity	m/s	35	35
of worktable	mm	340	340
Swivel range of worktable	degree	-3~ +7	-3~ +7
External grinding wheel size	mm	Max.250*25*75, Min.180*25*75	Max.250*25*75, Min.180*25*75
Headstock taper	morse	No.3	No.3
Tailstock taper	morse	No.3	No.3
Machine motor power	kw	2.34	2.34
Overall dimension	mm	1360*1240*1000	1360*1240*1000
Machine weight	kg	1500	1500
Roundness (O.D/I.D)	μm	1.5/2.5	1.5/2.5
Uniformity of dia. In longitudinal section	μm	5/8	5/8
Surface roughness (O.D/I.D)	μm	Ra.0.25/0.63	Ra.0.25/0.63

Detailed Photos
Packaging & Shipping
Packing shipping
For machine: usually by sea; For documents: by international express, eg. DHL,TNT or EMS.For packing :The machine willi be packed in plywood case.our service1. Technical support online service provided.2. Technical files service provided.3. Machine operation video provided4. On-site training service provided.5.Spare parts replacement and repair service provided.6 All of the questions will be replied within 8 hours7. If you need to develop products with your own specification, we can help you to work it out.8. Always be honest, never lie to customer, and never declare anything we don't have
Company Profile
FAQ
1:How can I choose the most suitable machines ?A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set ) We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
