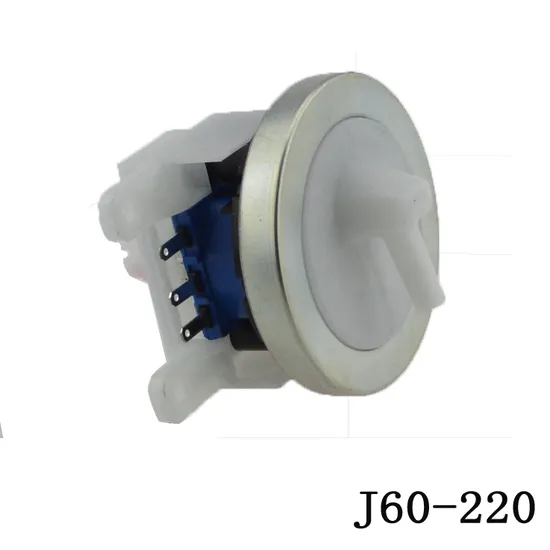

J60-220 (302411600009) DC 5V 3 Pins Electronic Water Level Pressure Sensor for Washing Machine

Product Description

J60-220 high frequency DC 5V 3 pins RoHS Compliance white color Water Level Electronic Pressure Sensor for washing machine water level control
-------------------------Mainly used for washing machine,dishwasher and other household appliances, by turning the water level pressure signal into a frequency signal which is input to a program control, the water level sensor thereby controlling the level of the water /liquid.
B268 series Model:J60-220/Q4N9-277
-----------------------Basic parameters

Install Size(mm)	ø37±0.1
Nozzle Size(mm)	ø5.5/φ6.5
Rated voltage (DCV)	5±0.2
Action Speed(mm/sec)	1-2

Frequency Range(KHZ)	water level range(MM)	working life
27.3-21.9	0-400	50000

-----------------------pressure sensor
COMPAYN INTRODUCTION
-------------------------------Hefei Rishang Electric Appliance Co., Ltd. founded in 1999. Covering an area more than 53,000 square meters, building area of 20,000 square meters, The company is High-tech enterprises, specialized in development and production of micro motor, drain control motor, water level switch sensor, electronic wire harness, electronic switch and so on. Which used in home appliances products, such as Air conditioner, Washing machine, Refrigerator, Microwave oven, Computer,etc. We mainly offer support and supply to the major home appliance manufacturers,including Midea, Whirpool, Little Swan, Haier, Sharp, Daewoo, Toshiba etc.

------------------------CERTIFICATE
RISHANG composed by a complete structure with strict management, and fully inspection methods.Products have passed CCC, CE, VDE and other safety certification. And we follow ISO9001: 2000 international quality system and ISO4001:2004 international environment management system.
RoHs and Reach certified,CQC Certified.
------------------------OUR MAIN MARKET

The sales network laid throughout all over China Oversea markets covered India Indonesia Thailand Mexico Korea Egypt Middle East Area Latin America Area

------------------------TEST EQUIPMENT
Our Company has full series of testing equipment which can cover all general inspection projects related to raw materials, components and finished products and can monitor type test projects
------------------------AUTOMATION PRODUCTION EQUIPMENT
We have an automatic assembly line for water level sensor, automatic crimping machines &assembly line for wire harness, terminal jacket All-in-One machine, more than 30sets of automatic winding machines and other automatic equipment more than200 sets. Hereby our production Capacity has been greatly improved. Currently annual production capacity for wire harness, micro motors, water level sensor and drain motor are 8 million/ 6 million/15 million/6 million respectively.
-------------------Payment Terms:
T/T 30% as deposit, and 70% before delivery. We'll show you the photos
of the products and packages before you pay the balance.
--------------------Packing and delivery
Packing: Usually 100pcs per carton and if qty big,we will use pallet to pile them up.
Or can also pack the product as your requirement.
Delivery: By express (usually samples order or small order)
By air
By sea
The delivery time usually 15-20 workdays, it also depands on your quantity


----------------------------FAQ
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
