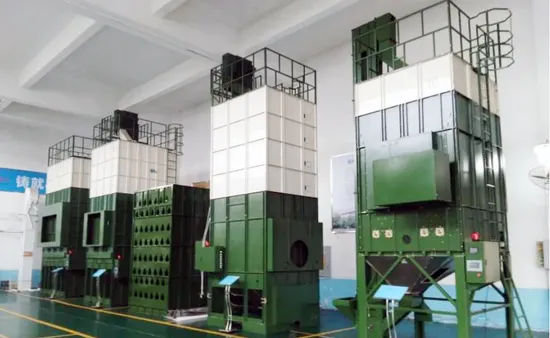

Rice Mill Paddy Dryer 12 Ton Low Temperature Circulating Rice Paddy Grain Dryer

Product Description

Performance Features:
Flexible and efficient heat source
Multiple heat supply is available. To minimize the environment burden, this machine is adopt the technology of low temperature fully drying, and the technology of maximum heat change.
Even blend, circular drying
Max air volume and low temperature drying technology is introduced to this machine (the air temperature is around 40-60C). To minimize the broken rate, and to ensure the products in good condition and to improve the dehydration efficiency, the grains will be heated in a very short time, and then to be tempering for a long time. Thus, production costs will also be reduced at most.
Easy to operate
High degree of automation. A full touch screen (HMI) with excellent clear display is adopted. And there are automatic and manual modes to choose from, the multi-point safety interlock device is also introduced to this machine.
Tehcncial Parameter

Model	TT-5H-10	TT-5H-12	TT-5H-15	TT-5H-20	TT-5H-25	TT-5H-30
Capacity (t)	5 ~ 10	5 ~ 10	5 ~ 15	7 ~ 20	10 ~ 25	10 ~ 30
Power (kW)	8.5	8.5	9.2	13.15	20.35	20.35
Air intake (m³/ h)	10000~ 14000	10000 ~ 14000	10000 ~14000	12500 ~ 14000	20000 ~ 25000	20000~ 25000
Net Weight (t)	2.3	2.5	3.0	3.7	4.5	5
Energy consumption	13~15	13~15	13~15	20~25	30~35	30~35
Feeding time(min)	50~60	50~60	50~65	50~65	50~65	50~70
Discharge time(min)	50~65	50~65	50~70	50~70	50~70	50~75
Percent of moisture removed (% / h)	0.5~1	0.5~1	0.5~1	0.5~1	0.5~1	0.5~1
Fuel	Husk; straw; wood; peanut stalk; corn cob (stalk) and other waste biomass Coal, diesel, kerosene, natural gas, steam, etc
Safety Device	Thermal relay, Air pressure switch, Full quality alarm, Timer ON/OFF, Control fuse, Overload protection device, Temperature sensor, Abnormal overheating
