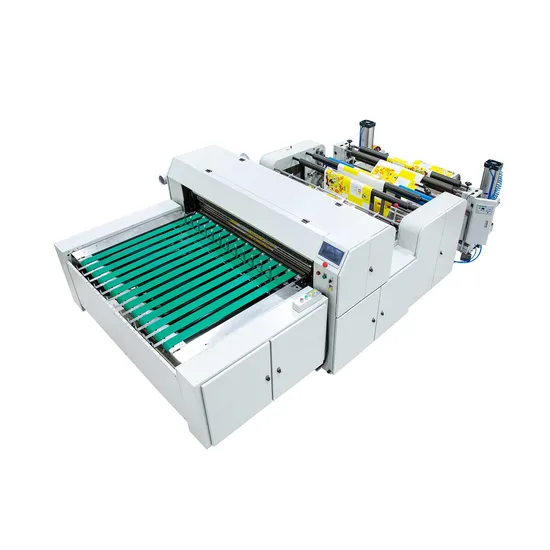

Automatic A4 Production Line Ream A3 A4 Paper Roll Cutting and Packing Machine with Converyor

Product Description

Product Description
Product Parameters
Feature:
The machine is suitable for horizontal and longitudinal cutting big jumbo roll materials, such as paper, laminated paper, printed paper, adhesive sticker, non-woven fabric and plastic film, etc. The machine is widely apply to paper products processing industry, printing and packaging industry
Main Parameters:

Model	SMZ-1100	SMZ-1400	SMZ-1600
Max. Web Width	1100mm	1400mm	1600mm
Max. Unwider Roll Diameter	¢1400mm	¢1400mm	¢1400mm
Cutting Length	300-1200mm (Cutting Length can be customized from 1300-1600mm)	300-1200mm	300-1200mm
Cross Cutting Speed	30-200 times/min	30-200 times/min	30-200 times/min
Precision of cross cutting	±0.2mm	±0.2mm	±0.2mm
Cutting Thickness	70-500g/m2	70-500g/m2	70-500g/m2
Max. pile stack height	Max. 1200mm	Max. 1200mm	Max. 1200mm
Total Power	8kw	10kw	14kw
Machine Weight	4000kg	5000kg	6000kg
Overall Dimension	5500×1870×1850mm	5500×2270×1850mm	5500×2570×1850mm

1 roll for unwind,use hydraulic lifting( optional 2 rolls)air shaft (optional shaftless) EPC device Shaftless hydraulic discharge rack, one pair of air brakes, one Japanese SMC electric control proportional valve,8pcs 35 models of guide rails, one hydraulic station, four oil cylinders,3pcs aluminum rods, and one set of bat for correction. traction roller touch screen for operational system,360 degree rotary
auto trimming for optional, save people The electrical part adopts two sets of 1.5kw geetec, and the relay adopts Omron Cutting method: the lower knife is fixed, and the upper knife actively cuts
The cutterbed adopts cast heavy structure:
Linear guide rail (2 pairs)
Oil container (2pcs)
Lubricating oil can be recycled The PLC adopts Panasonic of Japan, the relay adopts Omron, and the power switch adopts Taiwan Mingweiroll to sheeting for sample,can make different material, (film ,paper, aluminum, non woven etc.
Company Profile

Packaging & Shipping
Certifications
FAQ
Q: Are you manufacturer or trading company?
A:We are the manufacturer and have our own workers and factories.
Q:How long is the warranty period?
A: All of our products have 2 year warranty and whole life maintance
Q: What's the main market of your company?
A: We have customers all over the world
Q: What's your delivery time and payment Terms?
A: Normally,it need about 10-30 days.The exact time depends on your quantity.The payment terms always 30% deposits,70% to be paid before shipment.
Q: What package do you use for the product?
A:Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost.
Q: Does your factory provide installation service?
A:Our engineer can go to customer factory to installation . buyer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 120-150USD/Day per person since the day start out until the day arriving at factory.
Q: Can we visit your machine operation in your factory?
A: Welcome to you go to our factory to see the machine operation.
Q: Where's your factory located? How can we visit there?
A: We are in Zhixin industry Zone, Ruian City,Zhejiang province,China.
You can by air to Wenzhou airport and by High-speed train to Rui'an Station
