Basic Info.
Transmission Rate
2g 3G 4G 5g
Application
Enterprise, Household
Transport Protocols
Modulation Protocols
Transmission Mode
Fax Modem
Network
Wireless LAN, Wired LAN, WiFi, Wiegand, CATV
Fiber Type
Single Fiber Single Mode
2.4GHz WiFi (IEEE 802.11b/G/N)
8.2 W
Specification
34 x 175 x 115 mm
Production Capacity
10000month
Product Description

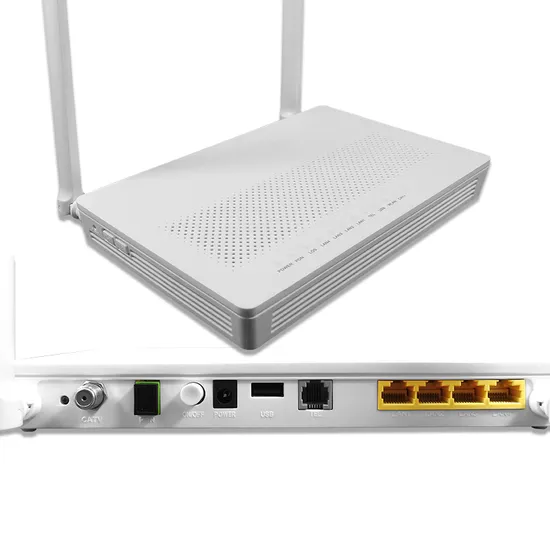

| Parameters | EchoLife EG8143A5 |
| Dimensions (H x W x D) | 34 x 175 x 115 mm |
| Weight (Without power adapter) | Approximately 235 g |
| Operating Temperature | 0-40°C |
| Operating Humidity | 5%-95% RH (non-condensing) |
| Power Adapter Input | 100-240 V AC, 50/60 Hz |
| UNI | 1 x GE, 3 x FE, 1 x POTS, 1 x Wi-Fi (2.4G), and 1 x CATV |
| NNI | 1 x GPON |
| Maximum Power Consumption* | 8.2 W |
| Maximum PoE Output Power | NA |
| Surge Protection | GE port: common mode 4 kV; differential mode 0.5 kV
AC power supply: common mode 6 kV; differential mode 6 kV |
| Installation Mode | Desktop |
| Compliance Certification | CE |
| GPON Port | Connector: SC/APC
Class B+
Receiver sensitivity: -27 dBm
Overload optical power: -8 dBm
Type B single-homing
Type B dual-homing (supported in Layer 2 forwarding) |
| Ethernet Electrical Port | Ethernet port-based VLAN tags and tag removal
1:1 VLAN, N:1 VLAN, or VLAN transmission QinQ VLAN
Limit on the number of learned MAC addresses
MAC address learning |
| POTS Port | Maximum REN: 4
G.711A/μ, G.729a/b, and G.722 encoding/decoding
T.30/T.38/G.711 fax mode
DTMF
Emergency calls (complies with the SIP protocol) |
| WLAN | IEEE 802.11 b/g/n (2.4G)
2 x 2 MIMO
Antenna gain: 2 dBi
WMM
Multiple SSIDs
WPS
Air interface rate: 300 Mbit/s |
Q1:Is this your private model?
A: Yes
Q2:Can i buy a sample for the quality tested? What's the MOQ of the product ?
A: Of course, welcome to buy sample to test quality. MOQ usually 100 pieces, special requirement, MOQ will be different.
Q3:Can you printed our logo on the product or do the customized package box for us?
A: Sure, our factory produces OEM/ODM .
Q4:What's the Lead time?
A: It is up to quantity and requirement, standard 2-7 working days.
Q5:What's your warranty time?
A:Warranty is 12 months
Q6:What's the shipment methods? Can we use our own Express account number?
A: Shipping methods is up to your. yes, we can send it via your account of courier.
>>
