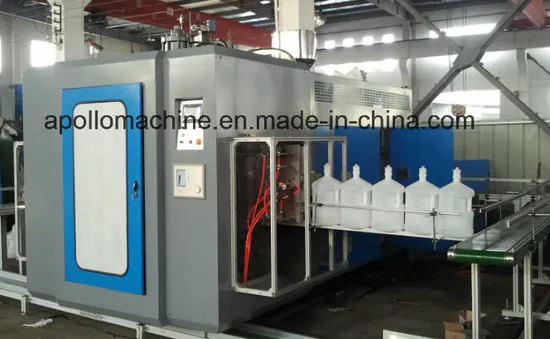

Double Station Blow Modling Machine/Plastic Bottle Blow Molding Machinery

Product Description

High speed HDPE bottles jerry cans blow molding machine
Cosmetic bottles making machine
Plastic bottle blow molding machine
Chemical bottles jerry cans producing machine
Automatic Plastic bottles jerry cans blow molding machine HDPE

Products:
This type of machine is suitable to produce different shapes of plastic bottles from 50ml to 5L.
Adopt Mitsubishi PLC from Japan
Contactor use Schneider from France
Most of spareparts of hydraulic system and pneumatic system are imported from Japan,Korea,France and Taiwan,china to ensure the quality of the machine
Technical Parameters: ( ABLB75II )
Basic parametersSuitable materialPE.PP,PVC,PS,PETG,so on
Max volume1L (3 die head)
Output capacity720~780 pcs/h
Size4.3×2.35×2.8(M)
Weight8T
systemSpecificationParametersNote
Plasticizion systemSummarizeHigh efficient low power consumption plasticizion system,transducer control,self-protect function when started at low temperature
ReducerHard finishing,High intension,Low noise reducer
Screw75mm,L/D ratio 24, 38CrMoALA Cooling system
Plasticization100Kg/HHDPE
Heating Zone3-4 Aluminum HeaterAutomatic heating
Heating power7KW/H
Extrusion MotorThree phase asynchronous motor (380V,50HZ)
Cooling Fan3-4zone Automatic cooling


Extrusion systemSummarizeHigh-grade alloy steel, center feeding
Die head number3
Center distance of die headsAs per your sample
Max die mouth90mm
Heating zone3-4 Stainless steel heating cycle
Heating power2~5KW
Clamping systemSummarize
High intension, rigidity, center mold locking, stable mould opening and clamping system
Clamping force80KN
Template distance148~600mm
Max mould size400X450mm
Electric systemSummarizePLC+ touch screen(man-machine interface)standard extrusion blow molding machine controlling system(AUTO monitoring, fault-alarm, auto counting ,auxiliary function available)
Japanese Mitsubishi PLC
system
Operate interfaceTouch screen, automatic self-diagnose alarm system
Temperature controlAutomatic temperature control module
Movement controlJapanese Mitsubishi, Chinese/English
Version
Electric protectionAmpere overload, electric short circuit self-protection function
Hydraulic systemSummarizeMultiple function hydraulic integrated block Proportional control, high efficient
Oil pump motorThree phase asynchronous motor (380V/220V,50/60HZ)
Oil pumpImported double pump
ValvesImported oil pump valves and connections
Oil pipesDouble layer overpressure resistant
System pressure60Kg/cm²
Cooling systemSeparate water cooling cycle, oil cooler cooling system
Pneumatic systemSummarizeTaiwan AIRTAC pneumatic system
Air pressure0.6Mpa
Air displacement0.8M3/min
Electromagnetic valve Taiwan AIRTAC
Cooling systemSummarizeSeparate cooling system of mould, barrel and oil system
Cooling mediumWater
Water flow80L/min
Water pressure0.3-0.6MPa
The main components of the machine. ( ABLB75II ) electronic parts
NameTrader
Micro computer control system
(PLC)Japanese PANASONIC
FP-XC60 SERIES
32 INPUT 16 OUTPUT
Module 16input+16output free for cutomer use

Electric box30% free space for customer use
Temperature ControllerJapanese PANASONIC Module
Auxiliary RelayOMRON
contactorSchneider from France
Electric motorSIEMENS
Power SourceTAIWANMEANWELL
TransducerDELTA from TAIWAN
hydraulic parts
NameTrader
Oil pumpTAIWAN HIGH-TECH
ValveJAPANYUKEN
Oil pump and connectionJAPANYUKEN
Sealed partJAPANHALLITE
air control system
NameTrader
CylinderTAIWAN AIRTAC
Air ValveTAIWAN AIRTAC

---
