50 Tons Pad Eye Type Load Cell

Product Description

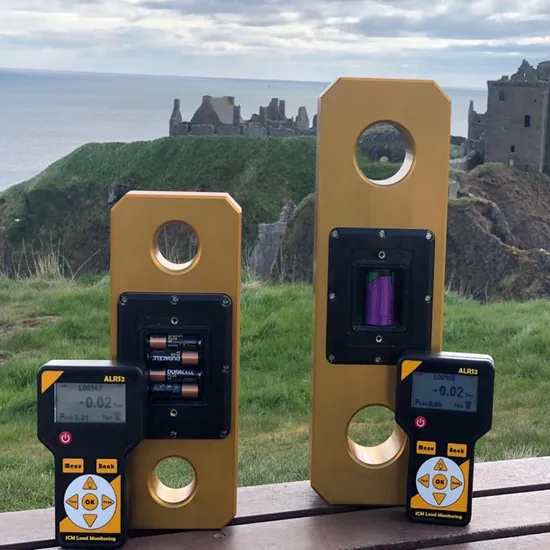

360 Gold Telemetry Load Cell
Our Answer to Measurement of Tensile Load in Heavy Industrial Applications:

All our load links are manufactured from anodized aerospace-grade aluminum, allied with our full O-ring sealing gives ingress protection of IP67.
Features of ALRS2 electronics
• 350 metre range
• Constant peak and actual load continually displayed
• 5 units of measurement, Te, Kgs, lbs, US Tons, kN
• Internal antenna
• Display light for easy viewing
• Fast update speed
• Simple battery change out
• Optional logging package
• Easy to use
Features of Gold telemetry load links
• Full O'ring sealing
• Lightweight aerospace aluminium
• Flush covers
• Full traceable calibration
• Temperature compensated
• 360° radio output
• Units available from 2.5 to 500 Tonne
• 1 year battery life option on load link

Size(Ton)	A	B	C	D	E	Weight(Kg)
2.5	23	215	120	270	25	2.4
5	27	227	120	292	32	2.6
12.5	44	226	130	324	50	5.3
35	55	240	134	360	70	7.1
55	62	290	140	440	70	9.4
75	78	298	163	476	85	15.0
100	100	346	194	556	124	26.1
150	120	396	244	680	127	47.1
200	132	442	280	784	150	79.0
250	146	466	300	844	150	TBA
300	160	582	400	1000	150	TBA
400	180	614	400	1098	200	TBA
500	190	600	490	1100	200	TBA

Why us: 360°(600m) radio signal transfer Internal antenna Linear construction Up to 500-hour battery life Simple battery change out Reduced costs Workable under bad weather such as harsh heavy rain, snow, and dust. Compact structure and lighter weight Works with kinds of controllers Safety factor 5:1 to ensure safety performance Accuracy 1% for a full range Specific calibration report for each load cell
Units from 2.5 to 50 Tonne are supplied in an IP67 transit case,
75 to 500 Tonne units supplied in a hinged wooden transit crate, made with heat treated wood so ready for international shipping
We are able to supply direct from our factory or via our growing list of sales partners worldwide

---
