Description:
The CBL08B is an obstruction lighting Control box designed for controlling and monitoring Lansing LED low intensity and medium intensity aviation obstruction lights. Incorporated an AC/DC power converter, CBL08B allows users to input AC voltage (85-265VAC) and converts to 48VDC/24V DC/12VDC for electrical safety works. The user-friendly interface is intuitive for users to monitor
operation status and easily configure functions and for monitor lighting operation system for the following failures: burned out lamp, photocell, power failure & flashing rate control.
There are eight light outputs (max. 1A load/output). Practically, for example, for input voltage 48V DC, each output connects one ZG2K or F864 medium intensity light, or up to seven DL32S/DL100S low intensity lights.
With a Form C dry alarm relay (NO&NC), the control box is capable of transmitting the obstruction lighting system’s failure to users’ alarm devices, when light failure or power-off .
A PT01 photocell is used for automatically switching on and off the obstruction lighting system from dusk to dawn,or we can put an internal photocell for easy installation if requires. Bypass switch on interface panel allows users to bypass the photocell for permanently lightening or testing.
DIN-rail terminal blocks save wiring time and enhance wiring safety. A 2P circuit breaker is effective in protecting the control box from overload. A surge protector (reach 20KV) enhances protection against voltage fluctuation and lightning strikes.

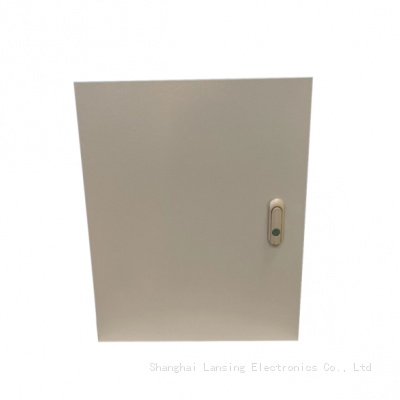

CBL08B outdoor controller covered by an aluminum enclosure and assembled with cable glands is a perfect IP65 model for harsh environment use.
Main functions and features：
• On/off Main Power Supply
• Control eight lights flashing synchronously
• LED indicators for light and power
•“Service+Service”/”Service+Standby” adjustable when double lights used
• Eight light-outputs, 1-8 selectable upon actual application
• Each light output load maximum 1A
• Steady and Flashing adjustable
• External photocell with prewired shielded cable, easy to maintain
• Photocell bypass switch—can switch ON/OFF the light when the photocell is not available
• Din-rail terminal blocks save wiring time and enhance wiring safety.
• Eight dry contact relay ( NO&NC) for alarm output of lights and power.
• Circuit breaker against overload and short-circuit
• Surge protector(up to 20KV) against voltage fluctuation and lighting strikes.
