US$16,000.00-16,700.00
|
1 Piece
(MOQ)
|
Basic Info.
Emission Standard
Euro III
Transport Package
W/O Package
Trademark
World or as required
Production Capacity
10, 000 PCS/Year
Product Description
Features:
1.Bosch TDCI technology high quality engine provides strong power but low fuel consumption
2.Transmission 24F+24R shuttle shift with creeper gear of minimum speed around 6m/min allows machine perform well in low-speed working condition
3.Domestic initiative PTO adjustable in three stages (540/760/850 rpm) allows tractor to match various implements and working conditions
4.High quality bearings are used for long prolonging working life
5.ROPS&Canopy are equipped as standard, while cabin and air brake are optional for comfor and road transport

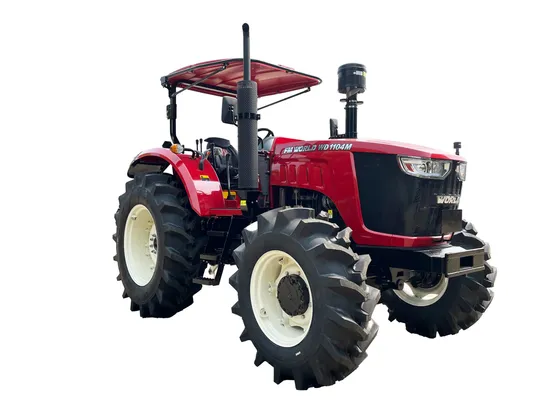

| Model | WD1104M | WD1404M | WD1404M-6 |
| Structure | 4*4 |
| Engine | Engine Power@speed(HP) | 110@2300 | 140@2300 | 140@2300 |
| Engine Type | 4 Cylinders, Inline, Vertical, Water-cooled, diesel engine | 6 Cylinders |
| Fuel Tank Capacity(L) | 180 |
| Battery | 12V |
| Air Cleaner | Dry |
| Transmission | Gears | Shuttle 24F + 24R with Creeper |
| Clutch | Dual Clutch, Independent |
| Brake | Mechanical disc |
| Differential Lock | Pin Type, Mechanical |
| PTO System | Direction of turning | Clockwise,viewed from tractor rear |
| Diameter of PTO Shaft(mm) | 35 |
| PTO Speeds(rpm) | 540/760/850 |
| Hydraulic system | 3 Point Hitch | Category III &II |
| Control System | Position ,draft |
| Rear Auxiliary Remote Valves | 3 Groups |
| Lifting Capacity(KG) | >=2912 | >=3706 | >=3706 |
| Other Parameters | Steering | Hydraulic Power Steering |
| Dimension(mm)@canopy | 4780*2130*2760(Canopy) |
| Gorund Clearance(mm) | 400 |
| Tires(F/R) | 13.6-24/16.9-34 R-1, other size optional |
| Wheel Base (mm) | 2400 |
| Wheel Track (F/R)(mm) | | | |
| Ballast Weight Front/Rear(kg) | 320/180 |
| Min Operation Weight(kg) | 4200(canopy)/4450(cabin) | 5120(canopy)/5225(cabin) |
>>
