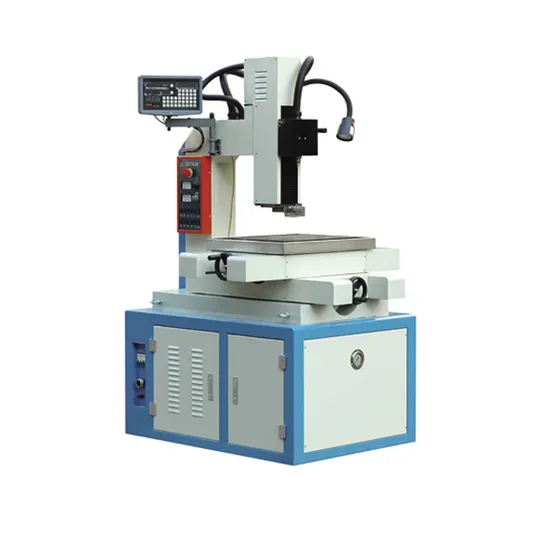

Dd703.40 High Speed Hole Drilling EDM Machine

Product Description

Technique parameters

Technique parameters	unit	DD703.40
Worktable size	mm	460*690
Worktable travel	mm	400*500
Z-axis travel by motor drive	mm	300
Z-axis travel by hand control	mm	200
Main spindle speed	rpm	60
Diameter of electrode	mm	φ0.3-φ3
Distance from guider to worktable	mm	80~280
water tank	L	25
Filtering model		Shallow-gap filter
Working medium		water
MAX.working pressure	Mpa	7
Power supply		380V,3Ph,50Hz
Max.woking current	A	30
Power consumption	Kw	3
Max. workpiece weight	kg	500
Machine weight	kg	1700
Machine demensions	mm	1800*1380*1800

Our Factory
Founded in 1958 and developed more than half a century, Jiangsu Dongqing CNC Machine Tool CO. Ltd., has now became a forge ahead modern enterprise for production of CNC machine.
The R&D, production and marketing are the main component of the company. As shown on the website, the main product of the company covers five series, CNC milling machine & vertical machining center, CNC engraving machine, CNC wire cut EDM, Die sinking EDM and Micro hole drilling EDM.
The company has always engaged in improving the quality, function and performance of CNC machine in the past several years. It has successfully passed identification of ISO, CE, SGS, TUV & Bureau. "Innovation, development and win-win situation" makes TOPSCNC enjoy high reputation in this line.
TOPSCNC people wish to share success with you in the future!
Service
1) Quality : We take care of the product quality in order to provide good service to our customers.
2)Warranty: One year after shipment,consumables are not included.
3)The quotation do not include installation and education training fee.
4) Payment Method: T/T or L/C
5) Delivery time : 18--25 days
6) Packing : Standard export wooden cases
7)Port: Shanghai
Contact us
Company:Jiangsu Dongqing CNC Machine Tool Co.Ltd
Address:East Suburb Development Zone,Taizhou city,Jiangsu Province,China


Web:topscnc.en.made-in-china.com

---
