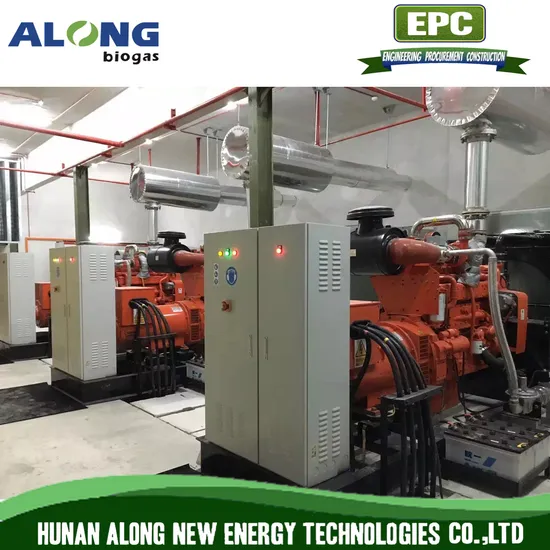

High Quality 20~1000kw Biogas/Natural Gas Generator Set/CHP System/Co-Generation/Genset Power Plant

Product Description

Hunan Along New Energy Technologies Co., Ltd
Committed to providing customers with high-quality biogas power generating units to solve the problem of local power demand, or connected with power grid network. Excellent performance has been proved by lots of actual installations, key components of imported brands from Europe and America, with outstanding characteristics of sustainable and stable operation with good loading capacity, low operating costs, long life-time.
It has been widely used in various domestic biogas projects and has a high reputation in Europe, South America, Southeast Asia, Oceania and Africa. So far, we have about 300 units biogas generators/CHPs running in the below countries:
Europe: United Kingdom, Italy, Norway, Czech Republic, Spain, France, Russia, Romania, the Netherlands etc;
Oceania: Australia, New Zealand, etc;
Asia: Thailand, Malaysia, the Philippines, Bangladesh, Pakistan etc;
South America: Chile, Argentina, Bolivia, Peru etc;
Africa: Kenya, South Africa, Ghana, Togo, Nigeria, Senegal etc; North America: United States;
ACG Series Biogas Generator Set/CHP

Set Model	Rated Capacity (KW)	Engine Model	Dimension (mm)	Weight (kg)
ACG24	24	HG4B	1350×750×1250	1050
ACG30	30	HG4B	1350×750×1250	1050
ACG40	40	HGT4B	1350×750×1250	1090
ACG50	50	HG6B	2250×820×1500	1100
ACG80	80	HGT6B	2250×820×1550	1200
ACG120	120	HGT6C	3300×1300×1900	1750
ACG120	120	HGN14	3500×1500×1990	3630
ACG150	150	HGT6L	3300×1300×1900	2800
ACG160	160	HGNT14	3500×1500×1990	3680
ACG200	200	HGNT14	3500×1500×1990	3680
ACG250	250	HGKT19	4000×1250×2020	4250
ACG300	300	HGKT19	4000×1250×2020	4450
ACG400	400	HGKT38	5150×1550×2200	7780
ACG500	500	HGKT38	5150×1550×2200	7890
ACG1000	1000	K50N	5500×2020×2380	9580

Comments:
Rated capacity as above is based on 50Hz, while 60Hz is available too;
Alternator brands for option: Leroy Somer; Control panel brands for option: ComAp, Deep Sea, Harsen and Smartgen;
Ignition brands for option: Altronic, WoodWard and MOTORTECH; Automatic air&fuel ratio control system, automatic oil feed device are available;
Grid synchronization panel, containerized package, exhaust purification system can be provided according to customers specific requirements;
Heat recovery system for combined heat and power plant is available;
Warranty: 1 Year or 5000 Hours which comes firstly, can provide service of on-site maintenance and supply spare parts during the whole life of machine;
ALONG has a professional team for on-site installation internationally.

---
