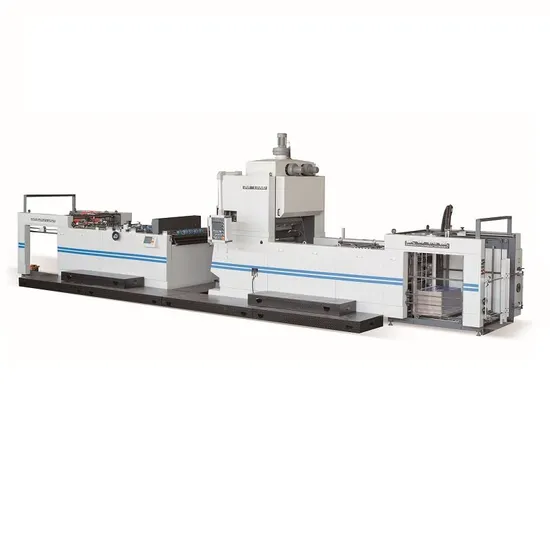

Sgf-1100c Automatic Water-Based and Thermal Film Laminating Machine

Product Description

Product Description Sgf-1100c Automatic Water-Based and Thermal Film Laminating Machine

Our Advantages 1. The machine adopts circling water heating system equipped with big diameter of drying roller and heat recycling system which enhances the heat efficiency. Compared with the same type of machine in China, it can save energy up to 20%.
2. High quality steel roller with specially designed inner part for water heating and circulation together with heating recycling system and precise processing techniques makes the roller fast in temperature rising and higher heat efficiency under high speed running.
3. The rubber roller adopts high quality polyester rubber with the feature of good elasticity, high temperature and wear resistance. The hydraulic pressure station can provide automatic pressure supply, pressure keeping and pressure unloading according to the need of the machine. When there is a power break down, the rubber roller can automatically separate with the thermal roller to protect it and extend the life span of the rubber roller and ensure a firm and bright film to paper lamination.
4. In gluing part, it adopts ceramic anilox roller and doctor blade mode. The doctor blade is specially design and made which makes the glue coating less and even to save glue consumption. Coordinated with the pneumatic auto glue system, the gluing part can ensure a continuous production.
5. High speed feeder with sub-piling or pre-piling system makes the machine change the paper pile without stopping the machine which greatly enhances the production efficiency.
6. Practice and precise servo motor and its system plus side-lay puller and touch screen makes the adjustment and operation easy with good precision (± 2 mm).
7. The separation part adopts perforation mode and equipped with paper curl elimination device to ensure a good separation no double sheet and no curling...
8. Auto-sheeting platform at delivery part which can rise up and down automatically with sheet counting functions.
9. This machine can also be used for pre-coated film with fast lamination speed and good quality of lamination.
Note:
1. According to the requirement of the client, the minimum sheet size can be 220*295mm, maximum sheet size1050*1450mm.
2. Other option functions: Knife cutting at Separating part Chain Knife or hot knife; Conveying part; Powder removal at conveying part- Brushing, static electric, water; Different Sheet conveying mode at delivery part- Scale sheet delivery. Product Parameters

Model	SGF-100C
Speed	0-82 m/min
Sheet Size (Max)	1100*1200mm
Sheet Size (Min)	350*350 mm
Sheet Weight	105-500 gsm
Total Power	95 KW
Total Weight	8000KG
Dimension (L*W*H)	12500*2600*2800 mm

Detailed Photos

---
