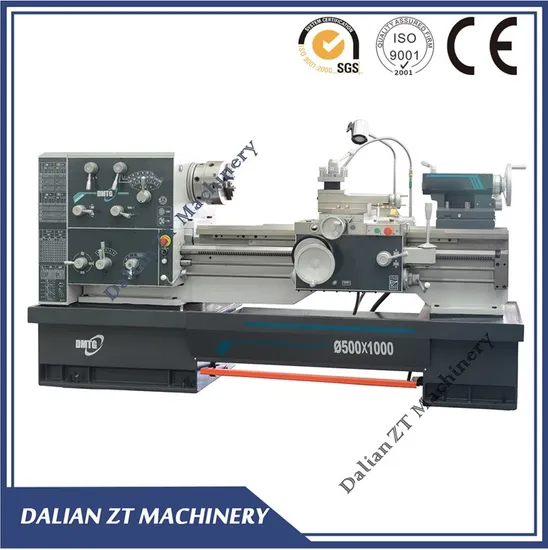

Dalian Conventional Horizontal Lathe DMTG Torno CDS6266Cx1000

Product Description

FEATURES:
* High rigidity machine structure;
* High speed spindle with big spindle bore;
* Headstock with clutch;
* Outside lubrication pump;
* Optional CE standard---Guarding; Touching stop; Foot brake

PRODUCT NAME		CDS6140B CDS6240B	CDS6150B CDS6250B	CDS6166B CDS6266B		CDS6150C CDS6250C	CDS6166C CDS6266C
CAPACITY
Swing over bed		400mm	500mm	660mm		500mm	660mm
Swing over cross slide		230mm	290mm	440mm		290mm	440mm
Max. turning diameter		440mm	500mm	610mm		500mm	610mm
Height of centers		1100mm	1130mm	1205mm		1130mm	1205mm
Swing in gap		700mm	760mm	870mm		760mm	870mm
Gap length (from spindle nose)		280mm
Distance between centers		750mm/1000mm/1500mm/2000mm/3000mm
SPINDLE
Spindle nose		D8 or C8
Taper of spindle bore		90 mm / 1:20				110 mm / 1:20
Spindle centre height		220mm	250mm		325mm	250mm	325mm
Spindle bore		82mm				105mm
Max. dia. of stock through spindle bore		81mm				104mm
No.of Spindle speed		16
Spindle speed ranges		26-2000 rpm				26 - 1700 rpm
		1000Nm
BED AND SLIDE
Width over bedways		394mm
Cross slide travel - X axis		348mm			355mm	348mm	355mm
Saddle travel - Z axis		(Dc)-120 mm
Travel of top slide		150mm
Max.dimension of tool shank		25x25mm
Cros feed		0.022-0.74mm/rev;45
Longitudinalo feed		0.044-1.48mm/rev;45
Number of Imperial Pitches		47
Range of Imperial Pitches		7 / 16 - 80TPI
Number of Diametral Pitches		47
Range of Diametral Pitches		7/8 - 160DP
Number of Metric Pitches		73
Range of Metric Pitches		0.35 - 80mm
Number of Module Pitches		45
Range of Module Pitches		0.2 - 40 MOD
Longitudinal rapid travelling speed		4 m/mim
Traosverse rapid travelling speed		1.5 m/mim
TAILSTOCK
Tailstock quill diameter		75mm
Tailstock quill taper		No 5 MT
Tailstock quill travel		150mm

WORKSHOP
EXHIBITION
FAQ
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
