US$7,600.00-8,900.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Knee-and-Column Milling Machine
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Overall Welding Tooth
Controlling Mode
Artificial
Automatic Grade
Automatic
Certification
GS, CE, RoHS, ISO 9001
Vertical Travel(mm)
450mm
T-Slot No. and Size
3-18-80
Spindle Speed Range
60-1800rpm 12steps
Between Spindle Nose and Table Surface
140-590mm
Main Motor Power
3.7(V)4(H)
Transport Package
Plywood Case
Specification
2600× 2200× 2550mm
Production Capacity
2000/Year
Packaging & Delivery
Package Size
260.00cm * 220.00cm * 255.00cm
Package Gross Weight
2400.000kg
Product Description
Product Description

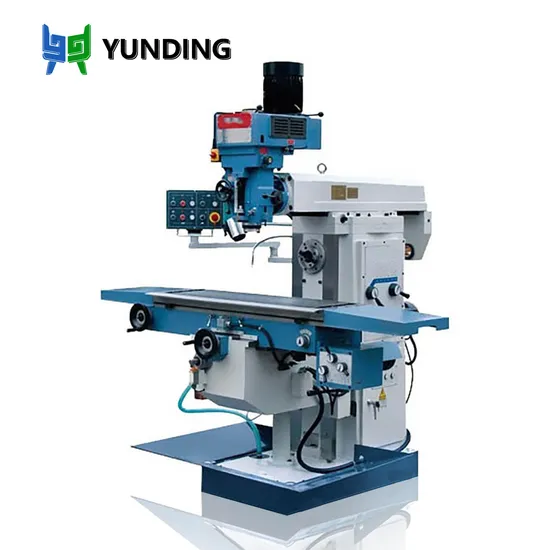

X6336 China Manufacturer Taiwan Head Vertical Horizontal Universal Turret Milling Machine
we are the most professional in making horizontal milling machine
Product Parameters
Performance characteristics: 1. Using rectangular guide machine is Rigid good,
2. Work table and guide rail through the ultra audio spark quenching.
3. Work bench X. Y.Z are gear drive automatic feed and manual operationApplication:1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.
2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear.
3. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.
Main technical specifications | Specifications | Units | X6336 |
Table size | mm | 1500×360 |
Table travel | mm | 1000/320/450 |
T slot(number-width-pitch) | mm | 3-18-80 |
Spindle taper | | ISO40 7:24 (V) |
ISO50 7:24 (H) |
Spindle speed range | rpm | (V) 50HZ:65-4500 ,60HZ:80-5440,16 steps; |
(H) 60-1800,12 steps |
Optional:variable 65-4000 |
Spindle travel | mm | 127 |
Spindle feed range | mm | 0.04,0.08,0.15 |
(3 steps) |
Distance between spindle nose and table surface | mm | 140-590 |
Distance between spindle axis and table surface | mm | 0-450 |
Main motor power | kw | 3.7(V)4(H) |
Head rotation (left - right ) | ° | ±90° |
Head rotation (front - rear) | ° | ±45° |
Weight | kg | 2400 |
Overall dimension | mm | 2600×2200×2550 |
Realistic photos
Detailed Photos
Our Advantages
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
>>
