China Mstar Hot Selling Woodworking Machinery Plywood Machinery

Product Description

MSTAR MACHINERY CO., LTD, nestled in the vibrant Linyi city of Shandong, China, stands as a beacon of modern, professional excellence in the realm of woodworking machinery. Specializing in the research, development, production, and distribution of cutting-edge woodworking machines, we have set the industry standard with our innovative solutions. Our flagship products include the high-speed spindleless veneer peeling line, sanding machines, hot presses, saws, and debarkers. Among them, our high-speed automatic veneer peeling line has emerged as the industry benchmark, celebrated for its unparalleled efficiency, energy conservation, time-saving capabilities, and labor-saving benefits.
Through our commitment to providing superior products, impeccable service, and honest sales practices, MSTAR has garnered global acclaim. We earnestly invite you to join hands with us in a fruitful collaboration, as we look forward to achieving new heights together.

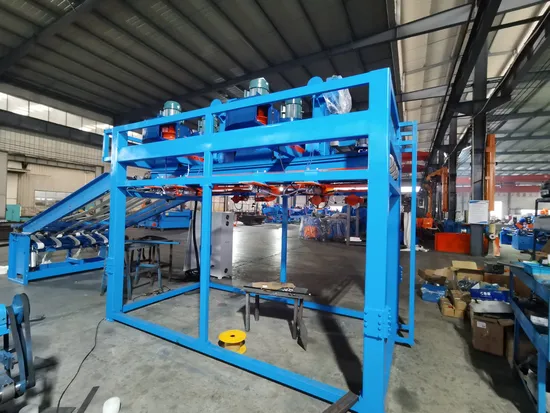

THIS IS 4FT VENEER PEELING LINE FOR PLYWOOD PRODUCTION
CIRCLED COLOR PART IS THE VENEER STACKER OF DOUBLE STACK

FUNCTION: IT'S THE LAST STEL DURING PEELING LINE, THIS MACHINE IS USED FOR COLLECT PEELING VENEERS AUTOMATICALLY FOR FOLLOWING STEPS INSTEAD COLLECT VENEERS BY HAND
ADVANTAGE: HIGH EFFICIENCY AND SAVE LABOR, AND THE VENEERS WILL BE COLLECTED FITLY AND EASILY KNOW HOW MANY PCS VENEERS COLLECTED SINCE THE MACHINE HAS AUTOMATIC COUNTING FUNCTION ON SCREEN
Product Description

DESCRIPTION	UNIT	PARAMETER
VENEER WIDTH	MM	2600
VENEER LENGTH	MM	1300
LIFTING TYPE		HYDRAULIC LIFT
FORMAT VENEER CONVEY		CHIAN AUTO CONVEY
SPEED		ADJUSTABLE
VENEER THICKNESS	MM	1-4
POWER	KW	32.4
STACKING HEIGHT	MM	1200
WASTE VENEER CONVEY		HAVE
OVERALL SIZE	MM	12000*3300*2500
WEIGHT	KGS	3000KGS

Detailed Photos

WITH SENSORS IN LINE WASTE VENEERS WILL BE AUTOMATICALLY PICKED OUT AND CONVEY OUT
THIS IS OPENING AUTOMATICALLY WHEN WASTE VENEER COMES AND FALL DOWN FROM HERE
THIS BELT IS STRONG AND WEAR-RESISTANCE

WHEN VENEERS ARE FULL, THE STACK VENEERS WILL BE CONVEYED OUT AUTOMATICALLY
WE CAN PLACE THE CONVEY DEVICE IN FRONT OF THE STACKER OR SIDE OF THE STACKER, DEPENDS ON YOUR WORKSHOP
