Performance Universal Horizontal and Vertical Metal Turret Milling Machine

US$10,000.00-50,000.00 1 Piece (MOQ)

Basic Info.

Model NO.

TUM1680BVH

Structure

Bed type

Milling Cutter Type

Angle Milling Cutter

Milling Cutter Structure

Indexable Type

Controlling Mode

Artificial

Automatic Grade

Semiautomatic

Precision

High Precision

Certification

Condition

New

Table Size

2000X400mm

Leadscrew

Ballscrew on X, Y Axes

Worktable Swivel Angle

±45°

Table Travel

1620X400X500mm

X,Y Axis Feeding

22.4-560mm/Min 8steps

Transport Package

2400X2200X2470 mm

Specification

3800kgs

Trademark

TOKMC

Origin

Tengzhou

HS Code

84595900

Production Capacity

100 Sets/ Year

Product Description

Product Description

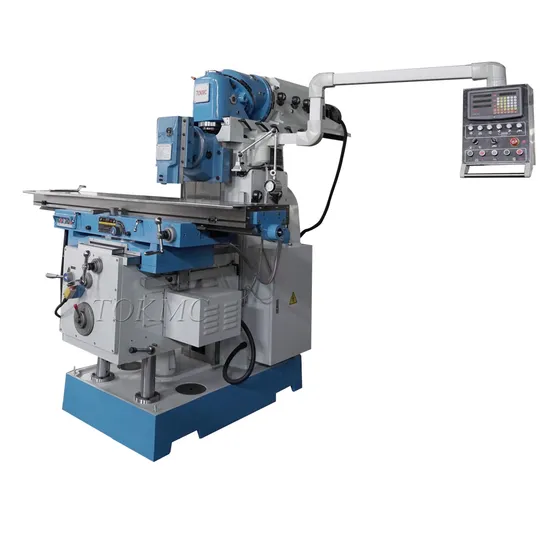

Performance Universal Horizontal and Vertical Metal Turret Milling Machine
Heavy Construction And High Rigidity.
Wide Slide ways For Stability.
ISO50 Spindle.
Universal Head. Pendant Control.
Hardened And Ground Slide ways and Table.

Model	TUM1680BVH
Spindle Taper	7:24 ISO 50 V /H
Distance from Spindle to Column surface	200-1000mm vertical milling head
Distance from Spindle Nose to Table Surface	210-700mm vertical milling head
Max.Distance from Spindle Center to Table Surface(H)	0~500 mm horizontal
Distance from Spindle Center to Table Surface	280-1160mm vertical head
Spindle Speed Range	50-1520 rpm V 60-1850 r.p.m H
Table Size	2000×400mm
Worktable Swivel Angle	±45°
Table Travel	1620mm
Cross	400mms
Vertical	500mm
X,Y axis Feeding	22.4-560mm/min 8steps
Z axis Feeding	11.2-280mm/min 8steps
T-slots of Table	3
Width	18mm
Distance	80mm
Main Motor	5.5kw/7.5 kw
Feeding Motor	1.1kw
Coolant Pump Motor	40w
Overall Dimensions	2400x2200x2470 mm
Net Weight	4100kg

Optional accessory

three axes DRO

universal dividing head 200mm with tailstock

slotting head

working area guard

machine vise 8"

Clamping Kit 58pcs

rotary table 250mm

spindle guard

X,Y axes ballscrew
