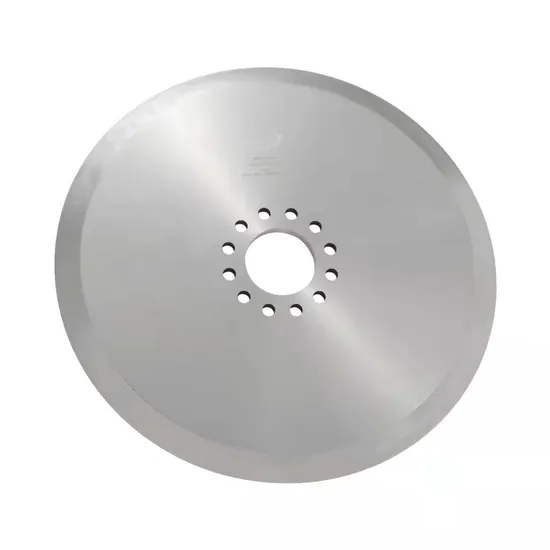

Circle Slotter Cardboard Machine Carton Round Knives for Corrugated Paper Industry Cutting Slitter Blade

Product Description

Mechanical Knives for Paper Industry For use in paper industry machines, for cutting pulp, paper, cardboard, corrugated cardboard and tissue.
Product range:
sheeter and slitter knives for the paper and cardboard industry (cut-off, serrated, cross-cutting knives),
circular dished and plain knives,
log saw blades, knife holders and other knives for the pulp,
paper and paper-processing industries, etc
(A) Product Description
1. Top and Bottom Slitting Knives for Paper Processing Making Industry.
We support the paper processing industry with efficient blades and knives.
Including but not limited: Top and Bottom Slitting Knives, Multi-groove Knife, Circular Dished Knife, Cross Cutting knife, Cut-off,
2. Knives and Accessories for the Tissue Converting Industry. (Can be customized according to drawings)
Including but not limveited: Top and Bottom Slitting Knives, Log Saw Blades, CBN grinding wheels, Perforation and anvil knives, Handkerchief knives, Packaging knives, Napkin knis, Cross Cutting knife, etc.
3.Machine Knives for Corrguated Cardboard Industry
We supply standard and custom designs.Our product range for the corrguated cardboard industry includes:
Including but not limited: carbide slitting knife, Cross Cutting knife, Circular Knives and Straight Knives with and without teeth, grind wheel, etc.

Industrial Blades Materia Steel Grade Table
Categories	China(GB/T YB)	Euro(DIN/BS/NF)	American(AISI)	Japan(JIS)	ISO
Alloy Tool Steel	9CrSi	―	―	―	―
	6CrW2Si	―	―	―	50WCrV8
	Cr12Mo1V1	1.2379	D2	SKD 11	X153CrMoV12
	Cr12MoV	―	―	―	―
	4Cr5MoVSi	1.2343	H11	SKD6	X37CrMoV5-1
	4Cr5W2VSi	1.2606	H12	SKD62	―
	4Cr5MoV1Si	1.2344	H13	SKD 61	X35CrMoV5-1
High Speed Tool Steel	W18Cr4V	1.3355	T1	SKH2	HS18-0-1
	W6Mo5Cr4V2	1.3341/1.3343	M2	SKH51	HS6-5-2
	W6Mo5Cr4V3	1.3344	M3	SKH53	HS6-5-3
	W6Mo5Cr4V2Co5	1.3243/1.3245	M35	SKH55	HS6-5-2-5

Stock size (Special customized size is acceptable)

Specification	Outer diameter	Inner diameter	Thickness	Knife edge type	Material
Disc type knife
75x45x1.2	Φ75	Φ45	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
90x60x1.2	Φ90	Φ60	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x70x1.2	Φ105	Φ70	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
105x75x1.2	Φ105	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
110x75x1.2	Φ110	Φ75	1.2T	Single/double side	W6Mo5Cr4V2/SKH-51/SKD-11
Flat round knife
80x40x1.0	Φ80	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
90x60x1.0	Φ90	Φ60	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
120x40x1.0	Φ120	Φ40	1.0T	Single/double side	W6Mo5Cr4V2/SKH-51/YG12/SKD-11
half cut-off slitting knife
70x50x1.0	Φ70	Φ50	1.0T	double side	YG12/SKH-51
80x50x1.0	Φ80	Φ50	1.0T	double side	YG12/SKH-51
100x60x1.0	Φ100	Φ60	1.0T	double side	SKH-51

OUR COMPANY:
NANJING HANGJIN MACHINERY EQUIPMENT CO. , LTD. is located at Nanjing city, JiangSu Province, the biggest Industrial Concentration District of China. is one professional manufacturer which provide various of blade and Knife, widely used at steel, agriculture, graziery, paper-making, package, forestry, lithium battery, cottonocracy, plastic, food etc.
We have progressive equipments which from Germany and Japan, independent research and develop department, can produce different kinds of blades as customization. Our goods with high quality, best seller at Southeast Asia, the Middle East, Europe, USA, South America etc.
Our Goal: Be the most professional carbide cutting and slitting knives manufacturer.
Certification:
FAQ: Q: Are you trading company or manufacturer ?
A: We are factory of tungsten carbide products. Q: Where is your factory located?
A: We are located in NanJing. Q: How long is your delivery time?
A: For the normal type which we have mold it takes two weeks after receiving the advance payment.
For the non standard which we do not have mold it takes 4 to 6 weeks when receiving the advance payment. Q: Is the price Competitive?
A: UKO offer reliable products with good price. Q: Are the products High Quality?
A: Yes. Raw material will be tested before bulk production, and we will check the physical properties, shape and tolerance for ensuring qualified products before shipping.

---
