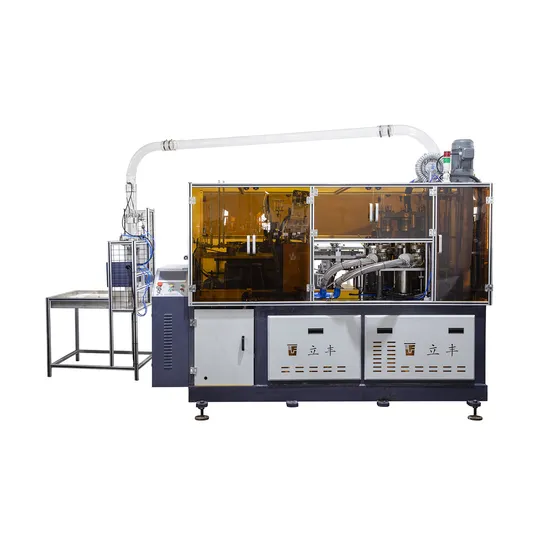

Lf-110 High Middle Speed Paper Cup Forming Machine

Product Description

Hot selling!! paper cup making machine
A. PRODUCT DESCRIPTION
LF-110 MID-speed paper cup forming machine is a multi station high-speed automatic
machine producing both single and double PE coated drink cups through
continuous process of automatic paper feeding,sealing,oil injection,bottom
cutting,heating,knurling,curling and stacking.The machine adopting hot air system,PLC
control,servo motor driving,full-automatic failure warning,counting,detection,stopping,etc. This machine speed can reach100-110pcs/min.
B. CHARACTERISTIC(middle speed paper bowl machine)

Model	LF-110
Paper bowl Size	Bottom:48-70mm Top: 70-95mm Height: 60-135mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	100-110pcs/min
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8mpa 0.4m3/min User should buy Air Compressor
General power	16kw
Net weight	1800kgs
Measurement (mm)	2500*1100*1500
Cup Side Sealing	EVERGREEN Ultrasonic
We can customize machine and mold according to customer's requirement.

C. MACHINE ADVANTAGES
1. The core components adopt open cam design, with gear motor
2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Use hot air heater system to make bottom more perfect and ensure the accurancy.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5. The machine is controlled by PLC, and has a encoder to control the working of ultrasonic, sensors, solenoid valve and so on, to make the running of each process more accurately.
6. Use new rotary type paper fan feeding system, instead of traditional linear bearing, to ensure machine performance more stable and faster machine speed.
D. PACKAGE DETAILS
our paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.
E. LIFENG Company and Certification
WE ARE THE MANUFATURER , NOT THE TRADING COMPANY.
F. Our Services
Guarantee and After- sale Service
1. One year guarantee for whole machine except of the easy-wear part.
2. 24 hours technical support by email/ wahtsapp /wechat
3. Use- friendly English software, user manual and detailed Video /CD

FAQ
Q1: if the machine break down overseas, what is the effecient to solve the problem?
A1: Basially , the machine is easy to operate, the engineer can teach the client how to fix the machine by video or email. And the engineer are available to overseas.
Q2: The payment, MOQ, producing period and delivery time? A2: T/T 30 % as the deposit, and the balance payment should be paid before delivery.
MOQ is 1 set.
The producing time is 25 days after deposit.
The delivery time is within 5 days after balance payment.
Q3: How to get my company?
A3: The address: 7# building , Yongding Road, Songjiadai Industril Zone, Feiyun Town , Ruian city.
If you want to visit my company, please send your ticket information to my skype or email. I will meet your in the Wenzhou Longwan Airport.
Contact information:
If you are interested in our paepr cup machine,
Do not hesitate to contact us
Contact person: Joy liang
Waiting for your coming~

---
