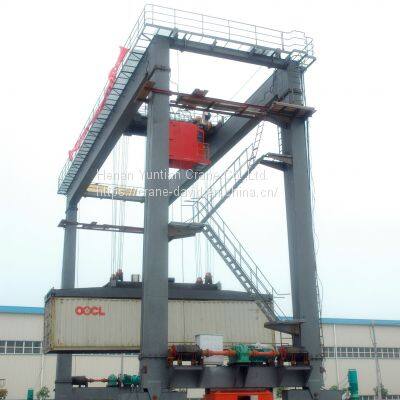

Port rubber tyre container gantry crane for 20ft 40ft container lift
Product Description
Rubber type Container gantry crane applies to international standard container transporting, loading and unloading at the container yard and railway container depots, with stable performance, high efficiency and ease maintenance having proper safety instructions and overload protection devices to maximizely ensure the safety of operational personnel and equipment. Electrical system uses PLC frequency adjustment which can easily control every mechanism.
Sketch Drawing
Technical parameters
Lifting Capacity (t)
| 10
| 16
| 20/10
| 32/10
| 36/16
| 50/10
|
Span (m)
| 18-35
|
Lifting Height (m)
| 10-13
|
Duty Class
| A5-A8
|
Speed
(m/min)
| Lifting
| 8.5
| 7.9
| 7.2/10.4
| 7.5/10.4
| 7.8/10.5
| 6/10.4
|
| Trolley
| 43.8
| 44.5
| 44.5
| 41.9
| 41.9
| 38.13
|
| Crane
| 40
| 38
| 38
| 40
| 40
| 38
|
Motor
| Lifting
| YZR180L-6/17
| YZR225M-8/26
| YZR225M-8/26
YZR200L-6/26
| YZR280S-10/42
YZR200L-6/26
| YZR280M-10/55
YZR225M-6/34
| YZR280M-10/55
YZR200L-6/26
|
| Trolley
| YZR132M1-
6/2.5*2
| YZR132M2-
6/4*2
| YZR132M2-
6/4*2
| YZR132M1-
6/4*2
| YZR132M1-
6/6.3*2
| YZR132M1-
6/6.3*2
|
| Crane
| YZR160L-6/13*2
| YZR160L-6/13*2
YZR160M1-
6/6.3*4
| YZR160L-6/13*2
YZR160M2-
6/8.5*4
| YZR160M2-
6/8.5*4
| YZR160L-6/13*4
YZR160M2-
6/8.5*4
| YZR160L-6/13*4
|
Weight
(t)
| Trolley
| 9
| 9.5
| 12
| 16
| 18
| 24
|
| Total
| 63.2-100
| 78-106
| 79-120
| 95-108
| 106-155
| 195
|
Wheel Pressure (KN)
| 225-295
| 255-373
| 208-289
| 324-334
| 314-363
| 452
|
Steel Track
| 43kg/m
| 50kg/m
|
Power Source
| 3-phase A.C 380V 50HZ (As your demand)
|
Product show
Features
1) Reasonable structure
2) Favorable performance
3) Smooth starting and stopping
4) Safe and reliable traveling
5) Low noise, commodious cabin and good view
6) Convenient maintenance, excellent exchangeability for parts and components
7) Energy saving,reduce energy consumption
8) Using transducer for travelling or traversing crane to realize step speed or stepless speed change
9)Primer and finishing paint
10)Crane structure:steel box type
1. the capacity is ton
A.5 B.10 C.16 D.20
2. the span is m
A.10 B.12 C.20 D.30
3. the lifting height is m
A.6 B.10 C.12 D.18
4. Industrial voltage _____V, _____HZ, 3Phases
A.380V/50HZ B.380V 60HZ
5. About the crane working duty:
1) How many hours will this crane work per day?
2) How many times does the crane lift the goods per hour?
3) Always full load lift?
To get the latest quotation,
please copy the above options and click here to select your specific requirements.
