Automatic Vertical Wheel Head Moving Surface Grinder Machine M7163

Product Description

automatic vertical wheel head moving surface grinder machine M7163

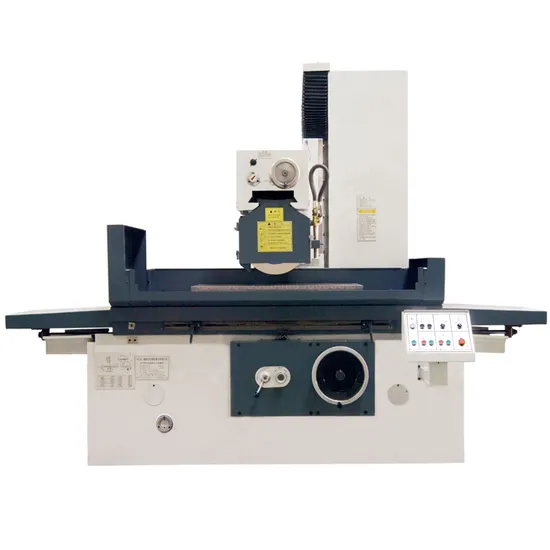

Heavy Surface Grinder Machine M7163
Standard accessories:
Diamond dresser base, Wheel exactor, Balancing arbor, Foundation bolts and wedges, Brush, Electric magnetic chuck.
Optional accessories:
Wheel balancing stand, Diamond pen, Demagnetizer.
Heavy surface grinder machine M7163 surface grinder with good control box and the electrical parts adopted SIEMENS and other famous brand. The circuit is well designed insure more safety.
Feature:
The accuracy of this machine is 0.005mm and it can meet the routine machining job requirement.
The worktable longitudinal movement is driven by the vane pump, so that to make the movement stable and fluently with low noise.
The wheel head adopts the bearing bush structure, so that to handle the heavy duty machining job.
The machine gets the hydraulic auto feed and manual feed in cross feed unit, which is very convenient for operation. The wheel head vertical movement is controlled manually, it also equips with the rapid elevating unit to reduce the labor intensity and improve the working efficiency.
The machine not only works stable and performance reliable, but also gets the advantages of low noise, accuracy stable and easy operation.

Model

Unit

M7130

M7140A

M7140A

M7140A

M7150A

M7150A

M7150A

M7163

M7163

M7163

x1600

x2200

x1000

x1600

x2200

x1250

x1600

x2200

Worktable size(WxL)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max matching dimension(W x L)

Mm

300x1000

400x1000

400x1600

400x2200

500x1000

500x1600

500x2200

630x1250

630x1600

630x2200

Max distance between spindle center

Mm

575

600

700

lineand worktable surface

Longitudinal moving speed of worktable

m/min

5//25

3//27

T-slot number x W

Mm

3x18

3x22

Wheel head

Continuous

m/min

0.5-4.5

feed speed

Cross moving

Intermittent

Mm/t

3//30

feed speed

Hand wheel

Mm/gra

------

0.02

0.01

feed

Vertical

Rapid

Mm/min

400

Moving

speed

of wheel head

Hand wheel

Mm/.gra

0.005

feed

Wheel Head

Power

Kw

5.5

7.5

7.5

motor

Rotation

Rpm

1440

speed

Total power

Kw

8.63

11

13.5

12.25

13.75

15.75

13.75

15.75

Max loading capacity

Kg

470

620

1000

1380

700

1240

1410

1010

1290

1780

of worktable

(with chuck)

Chuck size(WxL)

Mm

300x680

400x1000

400x800

400x1000

500x1000

500x800

500x1000

630x1250

630x800

630x1000

x1

x1

x2

x2

x1

x2

x2

x1

x2

x2

Wheel size

Mm

350x40

400x40

400x40x203

(ODxWxID)

x127

x127

Machine

Cm

286x154

311x182

494x182

674x182

311x190

514x190

674x190

399x220

514x220

674x220

dimension(LxWxH)

x203

x223

x223

x223

x242

x242

x242

x242

x242

x242

Machine Weight

t

3.49

5.01

6.51

7.6

5.78

7.32

8.78

6.86

7.85

9.65

Surface grinder more photos

---
