High Quality Granite Marble Cutter CNC Profiling Machine

US$13,000.00-16,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PLC-1200 1600
Application
Machinery & Hardware, Art & Craft, Chemical, Construction, Mineral Industry, Stone Industry, CNC Profiling Machine
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
API, CCC, SONCAP, GOST, ISO, CE, Granite Profile Shaping Machine
Product Name
Special Shapes Processing Machine
Machine Type
Stone Profiling Machine
Main Motor Power
15kw
Voltage
220/380/415V
After Sales Service Provide
Engineer Available Service Machinery Overseas
Warranty
12 Months
Max. Processing Size
3000X1600X350mm
Transport Package
Seaworthy Wooden Case for Shape Profiling Machine
Specification
5200x2600x2400mm
Trademark
Wanlong
Origin
China
HS Code
84641000
Production Capacity
5000sets Per Year

Product Description

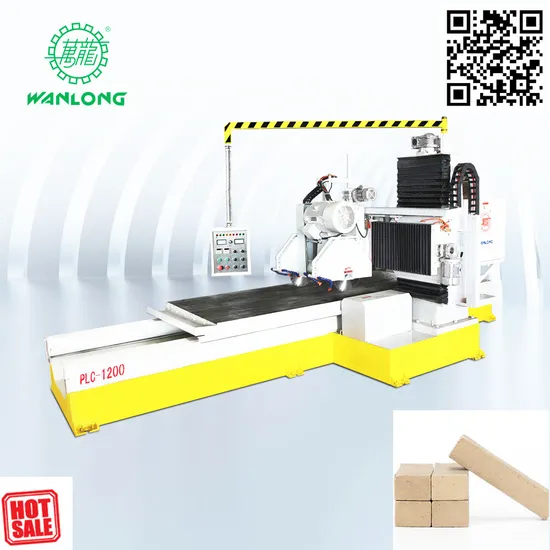

PLC-1200/1600 Multi-functional Profile Machine
This machine is automatically controlled by microcomputer, specially designed to carry out architectural shaping such as profile, Roman column and other diverse shapes on granite and marble.
It works with double blades and automatic tracking shape of model. it is very easy to operate.
Equipped with precision mechanical parts and Japanese name brand electric parts, this machine provides high efficiency, stability, reliability and long service life.
Technical Parameters
Model PLC-1200 PLC-1600
Blade diameter mm φ350-600 φ350-600
Main motor power kw 15 15
Cutting speed mm 0-7500 0-7500
Max. cutting ( L x W x H ) mm 3000 x 1200 x 350 3000 x 1600 x 350
Max cutting thickness mm 180 180
Overall dimensions(L x W x H) mm 5000 x 2200 x 2400 5200 x 2600 x 2400
Water Comsuption m³/h 4 4
Approximate weight Kg 4800 5500
