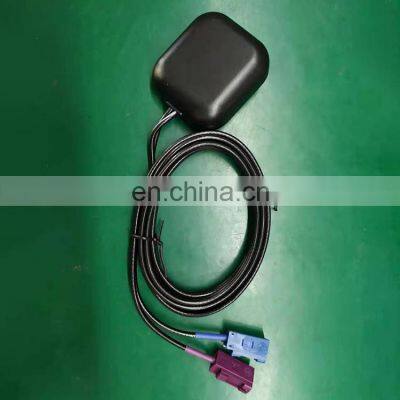

2 in 1 Fakra Connector 3 Meters LMR100 Cable 4G GPS Antenna, Car Vehicle Navigation LTE GNSS GPS Antenna

Product Description

Product Description
DescriptionDielectric AntennaCenter Frequency 1575±2 MHz 1568±2 MHzV．S．W．R ＜1.5Band Width 24 MHzImpendence50ΩPeak Gain:＞3dBic Based on 7×7cm ground planeGain Coverage＞-4dBic at -90°＜0＜+90°(over 75% Volume)PolarizationRHCP4G AntennaCenter Frequency800/1900/2100/2300/2600MhzTypical Gain 4dB V.S.W.R＜2.0Impedance50 ΩLNA FilterLNA Gain Without cable 29 ±1 dBTypicalNoise Figure＜1.5V．S．W．R＜1.5DC Voltage 3V，5V，3V～5V (or other)DC current 4～10MA MechanicalOverall Size58.5X52.5X16mmDielectric Antenna Size 25X25X6mmCable LMR-100 (1.5M)Mounting3M adhesiveHousingBlackConnector(1) GNSS：FAKRA-C-K1.5 Blue Type C (long body)(2) 4G：FAKRA-C-K1.5 Purple D type (long body)● Working Temp: -40℃~+85℃● Waterproof test: place under the tap for 4 hours, let the water flow on the shell; pick upthe product after 4 hours. There is no water in the bottom of the product, indicating that thisproduct has a good waterproof function.● Vibration: Sine sweep 1g(0-p)10~50~10Hz each axis● Humidity: 95%~100%RWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorICAll Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIMCard HolderSensorIC

---
