Product Details
Product Description
Product Description

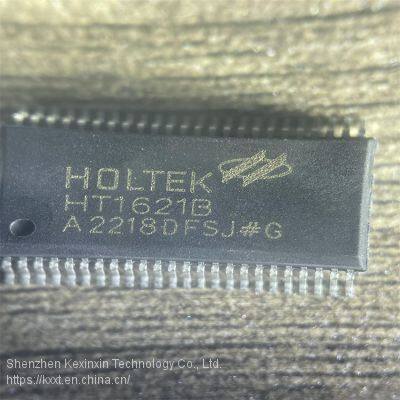

HT1621B SSOP-48 22+
Features
Operating voltage: 2.4V~5.2V
Built-in 256kHz RC oscillator
External 32.768kHz crystal or 256kHz frequency
source input
Selection of 1/2 or 1/3 bias, and selection of 1/2 or
1/3 or 1/4 duty LCD applications
Internal time base frequency sources
Two selectable buzzer frequencies (2kHz/4kHz)
Power down command reduces power consumption
Built-in time base generator and WDT
Time base or WDT overflow output
8 kinds of time base/WDT clock sources
324 LCD driver
Built-in 324 bit display RAM
3-wire serial interface
Internal LCD driving frequency source
Software configuration feature
Data mode and command mode instructions
R/W address auto increment
Three data accessing modes
VLCD pin for adjusting LCD operating voltage
HT1621: 48-pin SSOP package
HT1621B: 48-pin DIP/SSOP/LQFP package
HT1621D: 28-pin SKDIP package
HT1621G: Gold bumped chip
General Description
The HT1621 is a 128 pattern (324), memory mapping,
and multi-function LCD driver. The S/W configuration
feature of the HT1621 makes it suitable for multiple LCD
applications including LCD modules and display subsystems.
price: 0.3-0.6
>>
