Interlocking Clay Brick Making Machine with Block Molds Compressed Earth Brick Machine

Product Description

compressed earth soil brick making machine with block moulds no burn making machinery
Product Description
Main features as following.1. Function

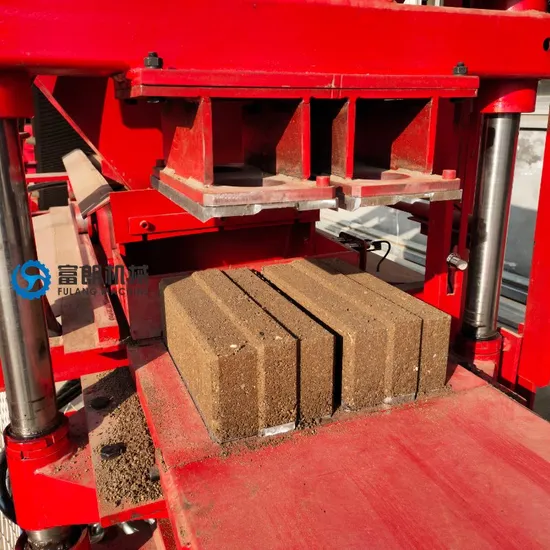

FL2-1 brick making machine can produce different shapes interlocking bricks by changing mould. Besides, the mould can be designed according to the need of customer.
2. High production efficiency
This clay interlocking compressed earth soil block brick making machine is a high efficient machine and the shaping cycle 13-18s,so the production efficiency is high with labor saving, it can produce 4000-6000 pieces bricks per 8 hours.
3. Advanced technology
Hydraulic pressure molding technology is adopted by this machine, and the pressure can arrive at 40 MPa, so the blocks produced are of good quality, large density and high strength.
4. High quality mould
The company adopts the most advanced cutting technology and heat treatment technology to ensure product quality and ensure customers' ease.
Device list with power consumption

NO.	Device name	Power(kw)	Device quantity	Worker quantity	Remark
1	rick making machine (electric motor)	11	1set	0
2	Mixer	5.5	1set	1	Load material to mixer 1 worker
3	Mold	0	1set	0
4	Spare parts and tools	0	1set	0

Product Parameters
Main technical parameter as following

Block machine size	2300x1150x2300mm		Power of host machine	11kw
Weight	1.9ton		Production capacity	4000-6000 bricks per 8 hours
Shaping cycle	13-18s		Related pressure	31.5Mpa
Voltage	Adapt to local		Molding area	450x450mm
Area for complete factory	200-1000m²		Workshop for block equipment	100m²
Worker	2-3		Function	Multi function

Block types
Molds are interchangeable. Following are the most widely used products. brick types. We can also customize molds molds according to your designs.
Company Profile
>>>FULANG Machinery Co.,Ltd .is a Chinese manufacturer of dedicated machinery for construction blocks and pallets.
>>>Our company's main products are baking-free block making machine, including concrete brick making machines, clay brick making machines,eps hollow insulation bricks machine and related machinery equipment (GMT pallet, mixers, batching plant, cement silo etc.)
>>>By choosing FULANG,customers can enjoy professional benefits with our dedicated services for design,install,layout planning,technology transfer,and production guidance.
Client visit
>>>With 20 years development ,our products are exported to more thant 80 countries.We warmly welcome customers from all over the world come to visit our factory and discuss long-term cooperation.
Project in abroad
>>>We also have engineers stationed abroad to help and guide customers to install and use the machine, providing you with advanced technical guidance and high-quality services.
Packaging & Shipping
♦ Packaging Details: container or in wooden case supported with soft materials.♦ Delivery Details: 20-25 days after receiving your deposit
FAQ
1.Q: What is the material for this machine ?
A: crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
2.Q: How many kinds of block can be made by this machine ?
A: this machine is able to make all types of hollow blocks, solid bricks, paving blocks, curbstone, hemp blocks, ceiling blocks, habiterra block etc. just need to exchange molds
3.Q: What is the hydraulic oil for this machine ?
A: Summber use 46#, winter use 32#. all easily found locally
4.Q: Will you provide spare parts for this machine ?
A: we will provide you one year free spare parts.can support machine working for many years
5.Q:How many days to receive the machine after place order?
A: 20-30days, depends on molds quantity.
6.Q: How about payment terms?
A: 30% down payment,. 70% balance before loading
7.Q: How about warranty?
A: 18months.
8.Q: How about installation?
A: We provide manual book, guidance video and online video, if needed, we can also dispatch our engineer to your site to install, commission and train workers

---
