US$10,000.00-100,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Transmission
Hydraulic Transmission
Bucket Capacity
0.5~1.0m³
Certification
CE, ISO9001: 2000
Engine Model
Cummins Qsf3.8
Engine Power
104kw/2200rpm
Engine Type
Electronic Injection, Water Cooled, Super Charged
Max Digging Radius
8000mm
Max. Digging Depth
4750mm
Max. Digging Height
8930mm
Max. Dumping Height
6520mm
Transport Package
No Package
Origin
Qingzhou City, Shandong Province, China

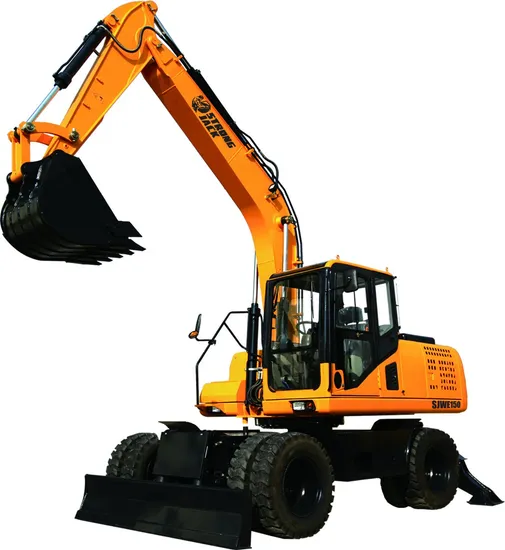

Product Description
Product Feature And Advantage
1. Full imported Korea hydraulic parts ensure the stable quality.
2. Special design on separating engine and radiation space, using enhanced cooling fan to increase cooling efficiency
3. Cummins Engine, high efficiency, low repair cost.
4. Equipped with double fuel filter to guarantee fuel purity to protect engine
5. Extend hydraulic line for various attachments.
6. Full sealed cabin with A/C and comfort seat make operator easy to work.
7. Opening covering parts makes the maintenance easy to proceed.
Detailed specifications
Engine
| Model | CUMMINS QSF3.8 104KW/2200RPM |
| Type | Electronic injection, water cooled, Super charged |
| No. of cylinder | 4 |
Main Performance
| Swing Speed | r/min | 0-12 |
| Traveling Speed | km/H | 0-28 |
| Grade ability | ° | 25 |
| Bucket Digging Force | kN | 91 |
| Arm Digging Force | kN | 55 |
Overall Dimensions
| Overall Length | mm | 7520 |
| Overall Width | mm | 2570 |
| Overall Height | mm | 3425 |
| Ground clearance | mm | 350 |
| Undercarriage width | mm | 2570 |
Operation parameters
| Operation Weight | KG | 15 |
| Bucket Capacity | m3 | 0.6 |
| Max. Digging Radius | mm | 8000 |
| Max. Digging Depth | mm | 4750 |
| Max. Digging Height | mm | 8930 |
| Max. Dumping Height | mm | 6520 |
| Max. Dozer Cutting | mm | 100 |
| Max. Dozer Lifting | mm | 400 |
| Tail Swing Radius | mm | 2420 |
>>
