Product Description
Product Description

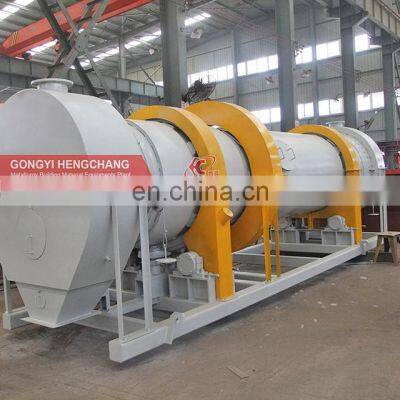

Products DescriptionRotary dryer is a type of drying machine used to reduce the moisture of raw material,it is widely applied in agriculture, building materials, metallurgy, chemicals, coal, fertilizer, sawdust industrials. It can accept almost all kinds of materials and can quick drying the materials. It is easy to operate and has large capacity. ADVANTAGE:1. Mature dryer line for different materials(Rich experience on this field from 1992 years, done many projects oversea).We made sawdust dryer line, cassava dryer line, chicken manure dryer line , cow manure dryer line, coal powder dryer line, sand dryer line, kaolin dryer line, Compound fertilizer dryer line dryer line, mineral powder dryer line, hemp and briquette dryer line and so on.2. Cost Control(Have lots of site experience, from equipments, installation to personnel site working, we can make a most optimal case to you).3. EPC-Turkey Project (We have enough capability to make EPC-Turkey project, which will be convenient for you).4.Free customized proposal, drawings and technical support before ordering.Main equipment listNo.ItemBrandNotes1HopperHCUsually build by customer 2Screw conveyor /Conveyor belt HCdepends on raw material3Burner HCor LPG,Coal4FurnaceHC5Rotary dryerHC6Dust collector HC7Draft fan HCCase of drying production lineSludge/soil dryer lineDue to environmental pollution problems, soil pollution is getting more and more serious. Our company treats it through high temperature heating and drying to make land reuse.Sawdust dryer line The material is sent to hopper by belt conveyor or bucket elevator, and then the hopper feeder enters the feeding end through the feeding pipe and Dryer for heating.Details ImagesDraft fan High strength wear-resistant impeller anti-leaking bearing box.With single suction, backward of monoblock type blades impeller have good aerodynamic performance and reliability of smooth operation.Cyclone dust Mostly used to remove particles above 5μm, and the parallel multi-tube cyclone deduster device also has the dust removal efficiency of 80-85% for particles at 3μm.Dryer bodyThe dryer cylinder section for toroidal welding, longitudinal along the entire circumference of not more than two weld article number, and shell welds shall be full, the minimum is not lower than the parent metal surface, the top should not be higher than 3mm, feed plate weld should be smooth.Weld edge bite depth should not be greater than 0.5 mm, continuous length should not be greater than 100 mm, should not exceed the total length of each weld bite edge which 10% of the weld length.Dryer in our factoryFeature1.The cylinder protect itself, thermal efficiency can up to 95%.2.The whole length of the dryer reduced to 50% approximately than mono-cylinder and reduced land investment to 50% approximately3.Cylinder adopts heat-resistant and wear-resistant steel plate welding with long service life and easy maintenance.4.High thermal efficiency , temperature of outer cylinder is 60or below(temperature of outer mono-cylinder is high to 150°C)5.Low temperature of outlet, long-service of dust removal machine. It also can be directly connected to air box pulse bag filter.6.Final moisture index can be adjusted according to requirements of customers. Product ParamentersModel(mm)Speed(r/min)Slope(%)Inlet Temperature(°C)Power(kw)Capacity(t/h)Weight(t)800×80003-83-5≤70040.8-23.51000×100003-83-5≤7005.51-35.61200×100003-83-5≤7007.52-3.513.51200×120003-83-5≤700112.5-414.21500×120002-63-5≤800114-618.51500×150002-63-5≤80018.55-8211800×180002-63-5≤80018.56-12312000×180001.5-63-5≤800228-15352200×120001.5-63-5≤8002213-1531.62200×140001.5-63-5≤8002214-1633.52200×160001.5-63-5≤8003014-1836DeliveryCompany Profile1.what's your raw material?2.what's the input and output moisture of your raw material?3.what's the capacity you need?tph?4.what's the heat source will you choose?
>>
