Q1330 Horizontal Lathe for Oil Country Metal Threading Machine Lathe

Product Description

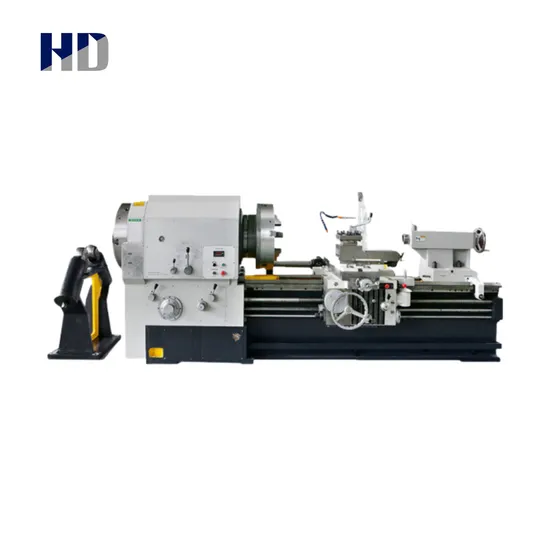

Product Picture
Specification Parameter

Specification	Unit	Q1325	Q1327	Q1330
Max. swing over bed dia.	mm	800	800	800
Max. swing over cross slide dia.	mm	540	480	480
Max. length of workpiece	mm	1500/3000
Width of bed	mm	550	600/650	600/650
Spindle bore	mm	255	280	305
Power of spindle motor	kw	11	15	15
Spindle speed	r/min	VF2 steps, 20-340	VF2 steps, 20-300	VF2 steps, 20-300
Z axis feed range	mm/r	26/0.07-1.33	32/0.095-14	32/0.095-14
X axis feed range	mm/r	22/0.02-0.45	32/0.095-14	32/0.095-14
Cariage rapid traverse speed	mm/min	4000	3740	3740
Cross slide rapid traverse speed	mm/min	1300	1870	1870
Metric thread range	mm	24/1-14	22/1-15	22/1-15
Inch thread range	T.P.I	40/2-28	26/14-1	26/14-1
Traverse of cross slide	mm	430	420	420
Max. traverse of turret	mm	200	200	200
Tailstock quill travel	mm	200	250	250
Tailstock quill dia.	mm	Φ100/ Morse 5	Φ100/ Morse 6	Φ100/ Morse 6
Chuck	mm	Φ630 4 jaw manual	Φ630 4 jaw manual	Φ630 4 jaw manual
Overall dimension	mm	3700*1600*1400	3750*1700*1600	3750*1700*1600
Net weight	T	6.0	6.5	7

Company Profile
Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.
Certifications
Packing&Shipping
FAQ

---
