Product Details
Product Description
Product Description

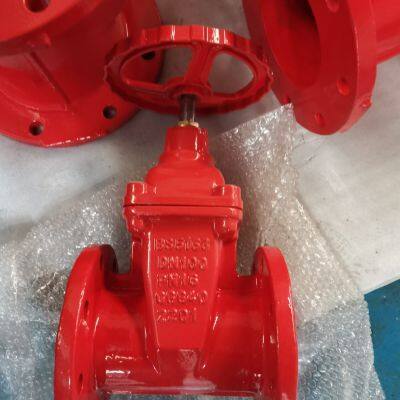

bs5163 gate valve pn16
Media:
| Water
|
Type:
| Direct-acting
|
Connection Form:
| Flange
|
Material:
| Ductile Iron
|
Product Name
| bs5163 gate valve pn16
|
Seal Surface
| Wedge Gate Valve
|
Actuator
| Manual
|
Pressure
| Ordinary Pressure
|
Transport Package
| Sea Worthy Plywood Cases
|
Specification
| DN40-DN600
|
Thread Position of Valve Rod
| Inside Gate Valve
|
Standard
| DIN
|
Production Capacity
| 5000pieces/Month
|
Application
| Industrial Usage, Water Industrial Usage
|
BS5163 is a British Standard specification for resilient-seated gate valves used for waterworks purposes. PN16 is a pressure rating that indicates the valve is designed to withstand a maximum pressure of 16 bar (232 psi) at a temperature range of -10°C to +80°C.
A gate valve is a type of valve that controls the flow of fluid through a pipeline by using a gate or wedge mechanism to either block or allow the flow. Resilient-seated gate valves have a rubber or elastomer seat that provides a tight seal against the gate when the valve is closed, preventing any leakage through the valve.
In the context of BS5163, a gate valve rated PN16 would have a flanged end connection and be suitable for use in waterworks applications with a maximum operating pressure of 16 bar. The valve body and gate would typically be made of cast iron or ductile iron, with a resilient seat made of EPDM rubber or a similar material.
Gate valves are commonly used in water supply and distribution systems, wastewater treatment plants, and other industrial applications where a reliable and maintenance-free valve is required. The bs5163 gate valve pn16 manufacturer standard ensures to this specification meet certain quality and performance requirements, and are suitable for use in waterworks applications.
>>
