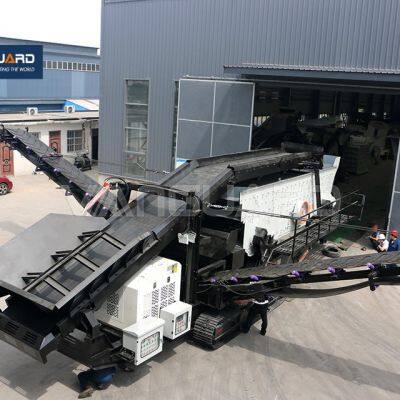

Crawler type Mobile Screening Plant with pedrail can move on the production site automatically. It adopts crawler-type vehicle chassis, fully hydraulic drive, equipped with vibrating screen, forming an integrated group operation mode. This patented machine can be adapted to mountainous region, wet land, etc. landforms. Vanguard Machinery crawler-type mobile screening plant has high reliability and adaptability, whether narrow terrain and harsh environments, and are widely used in road and bridge construction, urban construction, metallurgy, energy, and other fields.
PRODUCT PARAMETERS
Crawler-type mobile screening plant
| 2YA1860 crawler-type mobile screening plant
| 2YA2160 crawler-type mobile screening plant
| 3YA1860 crawler-type mobile screening plant
| 3YA2160 crawler-type mobile screening plant
|
Model
| Items and specifications
| power (kw)
| Items and specifications
| Power (kw)
| Items and specifications
| Power (kw)
| Items and specifications
| Power (kw)
|
Vibrating Screen
| Equipment
| 2YA1860
| /
| 2YA2160
| /
| 3YA1860
| /
| 3YA2160
| /
|
Motor
| Standard
| 22
| Standard
| 30
| Standard
| 22
| Standard
| 30
|
Frame
| Hydraulic crawler chassis
| Standard
| /
| Standard
| /
| Standard
| /
| Standard
| /
|
Boat frame
|
| /
|
| /
|
| /
|
| /
|
Upper sieve conveyor
| Specification
| B800*11.5m
| 7.5
|
|
| B800*11.5m
| 7.5
|
|
|
Drive method
| Electric drum drive
| /
|
|
| Electric drum drive
| /
|
|
|
Main conveyor
| Specification
|
|
| B1200*11.5m
| 11
|
|
| B1200*11.5m
| 11
|
Drive method
|
|
| Electric drum drive
| /
| Electric drum drive
|
| Electric drum drive
| /
|
Under the screen conveyor
| Specification
| B800*8.5m
| 5.5
| B1000*8.5m
| 7.5
|
| 5.5
| B1000*8.5m
| 7.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Large material conveyor
| Specification
| B500*7m
| 4
| B650*7m
| 5.5
|
| 4
| B650*7m
| 5.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Medium material conveyor
| Specification
| B500*9.5m
| 4
| B650*9.5m
| 5.5
|
| 4
| B650*9.5m
| 5.5
|
Drive method
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
| Electric drum drive
| /
|
Single power system
| Walking engine
| Yuchai diesel engine
| 78
| Yuchai diesel engine
| 78
| Yuchai diesel engine
| 78
| Yuchai diesel engine
| 78
|
Dual power system
| Generator set
| Yuchai diesel engine
| 100
| Yuchai diesel engine
| 100
| Yuchai diesel engine
| 100
| Yuchai diesel engine
| 100
|
Electrical System
| Electric control cabinet
| Host soft-start, CHINT electrical components.
| /
| Host soft-start, CHINT electrical components.
| /
| Host soft-start, CHINT electrical components.
| /
| Host soft-start, CHINT electrical components.
| /
|
Matching
| Belt Conveyor Folding Cylinder
| Belt Conveyor Folding Cylinder
| Belt Conveyor Folding Cylinder
| Belt Conveyor Folding Cylinder
|
Hydraulic pumps, valves, stations and tubing accessories
| Hydraulic pumps, valves, stations and tubing accessories
| Hydraulic pumps, valves, stations and tubing accessories
| Hydraulic pumps, valves, stations and tubing accessories
|
Dimensions(m)L×W×H
| Working size15*16.8*5.3
| Transport size17.5*3.8*3.5
| Working size15.3*17.2*5.5
| Transport size18*4.1*3.65
| Working size:15*16.8*5.3
| Transport size17.5*3.8*3.5
| Working size15.3*17.2*5.9
| Transport size18*4.1*4.05
|
Weight (t)
| Single-power model30tDual-power models31t
| Single-power model32tDual-power models33t
| Single-power mode:31t Dual-power models:32t
| Single-power model33t Dual-power models34t
|
Power (kw)
| Single-power model: 43kw(not including walking engine power),Dual-power models: 43kw(not including generator set power)
| Single-power model: 59.2kw(not including walking engine power),Dual-power models: 59.5kw(not including generator set power)
| Single-power model47kw (not including walking engine power) Dual-power models47kw (not including generator set power)
| Single-power model 65kw (not including walking engine power) Dual-power models65kw (not including generator set power)
|
Special Design of different models of the mobile crushing plant will be available upon request.
PRODUCT DISPLAY
STRUCTURAL FEATURES
▲Tracked chassis, adapt to more terrain；flexible movement, faster and more efficient transition, saving time and maximizing revenue.
▲The machine can be operated by local electric power. Thus the operating cost will be cut down and the emission of CO2 and nitrogen oxides is highly reduced. When there is electricity breakdown and under voltage, the diesel oil power device will be started to work to guarantee the continuous operation of the machine.
▲It is of high intensity, low on ground pressure etc. And it is easy to be transported on different terrains like mountain and
marsh.
▲It's with remote control operation and has a smaller turning radius and flexible driving in the work area, and at the same time can maintain a safe working distance.
PRODUCT APPLICATION
Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc
CUSTOMERS' SITES
Packaging and Shipping
view more >>Recommended by seller
50-100tph Capacity Mobile Stone Crusher Aggregate Rock Crushing Plant For Sale$119,600.00 / set1 set
Competitive Price 20 Tph Stone Crushing Plant Line Pe 400x600 Jaw Crusher$15,600.00 / set1 set
Gravel Rock Granite Gold Mining Machinery For Sale Fob Price Stone Symons Cone Crusher$3,700.00 - $56,000.00 / set1.0 set
Good Price Mining Quarry Limestone Crushing Equipment Tracked Mobile Jaw Stone Crusher For Sale$59,600.00 / set1 set
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
