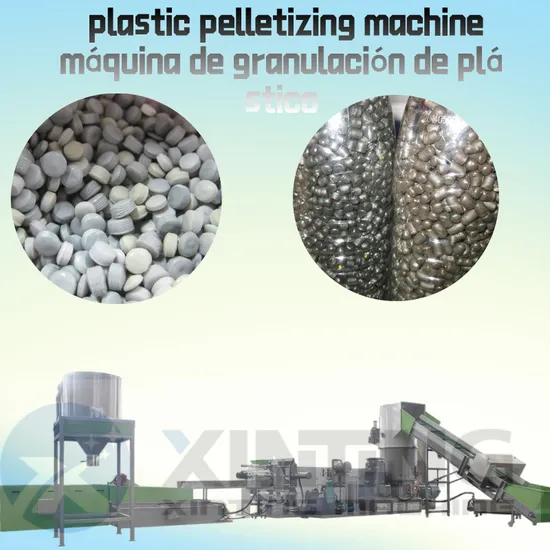

What Is Waste Plastic BOPP PP PE Pet PVC EPS ABS EPE Film Bottle Drum Recycling Granulation Machine Plastic Pelletizing Line

Product Description

Wasted Plastic Pet HDPE Milk Bottle Flakes Scraps PE LDPE Film PP Woven Shopping Bag Crushing Washing Pelletizing Granulating Recycling Line
WHAT WE CAN OFFER YOU
Product Description

PET bottle washing line :
XINTING Good Supplier plastic bottle wash recycle line PET bottle washing recycling machine 1-Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.
2-Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3-The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
4-Recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5-Recycling plastic machine output we can supply is from 300kg/h to 3000kg/h.

For the total PLASTIC MACHINE recycling washing line
Product Description of plastci recycling machine:
The pet bottle recycling machine is specially designed to produce fiber use PET flakes.
The flakes can be used for the 2-D, 3-D PSF, filament yarn, PET strap, PET sheet or PET film.
The pet bottle recycling line can adopt the PLC automatic control of the full line to control the final products quality and save energy.
Pet bottle recycling line can be equipped with the Europe automatic material sorting system and color sorting system.
plastic recycling machine can be customized according to the raw material and customer requirement Product Parameters
No.
Machine List Function

1	Belt Conveyor	Bottles conveying
2	Bottle Label Remover	Remove above 90% labels for both common and compressed bottle; No flakes waste and no water consumption
3	Manual Sorting Belt	Manually sort out PVC bottle, labels, and other impurities
4	Belt Conveyor	Bottle conveyor tp crusher
5	PSJ1200 Crusher	Bottle crushing into flakes
6	Horizontal Screw Loader	Conveying flakes to next screw loader
7	Screw Loader	PET flakes conveying
8	Floating Washer	Wash flakes and remove floating materials as PP, PE and Caustic soda
9	Low Speed Friction Washer	Remove sand, mud and dirty
10	Hot Washer	After hot washing, it's easier to remove oil, glue
11	Screw Loader	PET flakes conveying
12	Hot Washer	After hot washing, it's easier to remove oil, glue
13	Screw Loader	PET flakes conveying
14	High Speed Friction Washer	Remove the glue and dirty
15	Screw Loader	PET flakes conveying
16&17	Floating Washer	Wash flakes and remove floating material as PP, PE and Caustic Soda
18	Spray Washer	Remove the Caustic Soda
19	Centrifugal Dryer	Drying and flakes moisture reach 2%
20	Pipeline Dryer	Hot air drying, moisture <1%
21	Label Flake Separator	Remove little amount of label and dust in PET flakes
22	Packaging System	Storage silo for PET flakes
23	Electric Cabinet	Electric control for the complete line, can be customized

PET Flake Quality Reference Table:
Moisture Content <0.9% Label <20ppm

PVC	<20ppm	Variegated Tablets	<30ppm
Glue	<10ppm	pH	Neutral
PP/PE	<20ppm	Total Impurity	<100ppm
Metal	<20ppm	Flake Size	12mm, 14mm or customized

Production Consumption:
Items Average Consumption Per Ton Flakes

Electricity (kw/h)	200 kw/h
Steam (kg)	500 kg
Washing Detergent (kg)	8 kg
Water (t)	2m³

QUESTIONS AND ANSWERS:
Q:What about your machinery?
A:Seeing is believing.Our strength technical team guarantee the highest quality,not only of machine,but also of precisely control and final product.
Q:What about the price?
A:Our price is based on reasonable competition.
Q:What about after service?
A:We can offer 18months warrant since the machinery arrived at your factory except for durable parts.After warrant,we will offer space parts or repair service with or without charges. In the midst of the market economy, Xinting Company has established a good reputation, pursued excellent products, and provided perfect services in a sincere attitude and full of passion. It has always been satisfied with your requirements and wishes, providing a comprehensive and in place service. . Xinting people will provide customers with high-quality complete sets of equipment and comprehensive technical support based on the development concept of "Great Industry for 100 years".
Zhangjiagang Xinting Machinery warmly welcomes users at home and abroad to come to the company to negotiate!

---
