China Manufacture Hammer Mill for Mining

Product Description

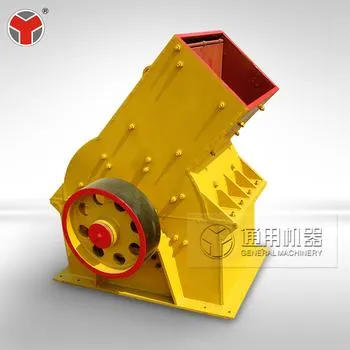

Hammer Crusher
Product introduction
The hammer crusher (hammer mill) crushes by the collisions between high-speed hammer and material, and the hammer crusher features are in its simple structure, high reduction ration, high efficiency, etc. The PC hammer crusher were developed for both dry and wet crushing of brittle, medium-hard materials for the mining, cement, coal, metallurgic, construction material, road building, and petroleum & chemical industries.
Working principle
The motor drives the rotor rotate of the hammer crusher at a high speed through the belt, and on the rotor there are series hammers. When the materials get into the working area of hammers, they are crushed by the rotating hammers of the hammer crusher with high rotation speed, the products which are crushed to meet the required size can be discharged by the outlet and become the final products, the large size products are brought back to the crushed area by the hammers of the hammer crusher for being recrushed until they reached the required size.
Technical parameter:

Model	Capacity (t/h)	Max Feed Size (mm)	Discharge Size (mm)	Motor Power (kw)	Weight(t)	Quotation (USD)
PC400×300	5-10	≤100	≤10	11	800
PC600×400	10-25	≤120	≤15	18.5	1500
PC800×600	20-35	≤120	≤15	55	3100
PC1000×800	20-40	≤200	≤13	115	7900
PC1000×1000	30-80	≤200	≤15	132	8650
PC1300×1200	80-200	≤250	≤19	240	13600

About us
Zhengzhou General Mining Machinery Co., Ltd was founded in 2004, aiming to serve the need in mining, metallurgy, construction, chemical industry etc. We manufacture TYM brand Mining Machinery which are 100% of our own design, production detection and marketing.
What distinguishes our machine from other 's worldwide is our invention and innovation on practical and easy crushing, milling system. We believe that quality should be integrated into every part of our machine.
Our main products are Powder Grinder, Raymond Grinders, High Pressure Suspention Grinders, High Pressure Micro-powder Grinders, Vertical Shaft Impact Crushers, Impact Crushers, Jaw Crushers, Cone Crushers, Vibrating Screens, Sand Washing Machines, nine series of products with more than 30 kinds of specifications.
They are all designed, produced, manufactured and tested in accordance with the standard of ISO9001: 2000 international quality system standard. Our products are recognized as quality products by technical supervision departments.
Every year, we export our grinders and crushers to South Asia, Africa, South America, middle East and other regions in quantity. And our Machines enjoy a high reputation in the foreign market. We welcome you visit our company, and hope we have chance to cooperate with you. Thank you.
Pre-sale services:
(1) device model choice.
(2) According to customer's special requirements, design and manufacture of products.
(3) Training technical personnel for clients.
(4) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program
Sales tracking:
(1) product acceptance.
(2) to help customers develop construction programs.
After-sale services:
(1) free to assign a dedicated service personnel, arriving at the scene and guiding customers' installation.
(2) equipment installation.
(3) on-site training of operators.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.
We hope our perfect products and service can satisfy you, and welcome to our factory to visit. Looking forward to building long-term relationship with you!

---
