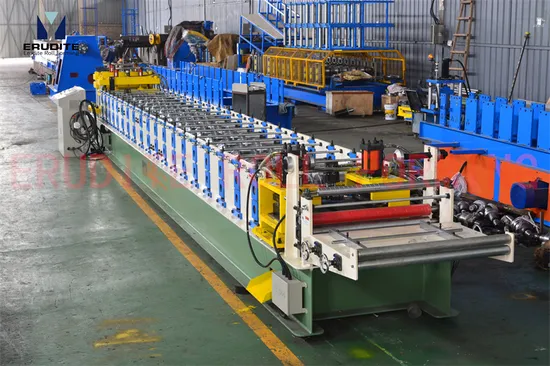

Yx75-450/600 Seam Lock Roof Roll Forming Machine

Product Description

YX75-450/600 ROLL FORMING MACHINE FOR SEAM-LOCK PROFILE, PRE-NOTCHING & POST PUNCHING+CUTTING
If customization:Yes
Series:Roll forming machine for seam-lock profile
Type:YX75-450/600
Brand:Erudite roll forming
YX75-450/600 ROLL FORMING MACHINE FOR SEAM-LOCK PROFILE
Profile:
The Chart of Process Flow
Technical Parameters
The main technical parameters are for your inference only.
Only if you provide the profile required or the real objects of sectional materials,
and we will offer the accurate parameters.

(1) 5 Tons un-coiler
Description	There are different choices, please turn to the catalogue of un-coiler
(2)The general machine parameter
Suitable roll forming material	Color steel sheet or galvanized steel sheet
Thickness	0.5-0.7mm
Frame design	Wall-plate-frame-design /Strong-stand-frame-design
Roll stages	18+1 stages, Including one stage to form the middle rib on bottom
Material of forming roller	45# steel with forge treatment, CNC lathes, Hard Chrome Coated
Shafts Diameter	Φ75mm
Main motor power	7.5KW with reducer
Max. Line speed of roll former	15m/min (Higher speed is available, depends on the specification required by the buyer)
Hydraulic group power	5.5 KW
Material of cutting blade	Cr12, heat treatment
Electric seaming machine and hand seaming pincers work together with machine
Electric Standard	415V /50Hz/3PH or as the customer's requirements
Major Color of Machine Painted	RAL 5015 (Blue) or as per customer's requirements
(3) PLC Control system
PLC	Siemens brand
Touch Screen	Siemens brand
Inverter	Shihlin or Panasonic brand
Encoder	Omron brand
(4)Product rack
Description	un-powered, 3 units
(5)Option: 1. 40GP/HQ container and Disposal inside for standing seam machine
(6) About us
Please visit the web site: eruditerfm.en.made-in-china.com for detailed information

FAQ
Where is the ERUDITE products market?
ERUDITE products sell well not only in the domestic market but also other countries and regions such as in Asia, Africa,Erurope,South America,Australia etc, formed into EERUDITE special sales network throughout the world.
Is the ERUDITE company a trade company or manufacture company ?
Erudite company is manufacturer and developed for near 10 years as one of more influential companies in the manufacture industry of cold rolling mills /roll formig line.
How does Erudite company provide the oversea after-service?
If installation is needed, Erudite company will dispatch a technician to the buyer's factory abroad to assist regulating the machine.
How many months for ERUDITE company machine guaranteed ?
In correct operation & maintaining ,the machine is guaranteed for 12 months since leaving factory.
What's ERUDITE company terms of payment ?
-FOB contract:
30% payment by T/T is required as deposit within ten (10) business days since the contract signing date. 70% balance payment is required by T/T prior to shipment.
-CFR or CIF contract:
30% payment by T/T is required as deposit within ten (10) business days since the contract signing date. 70% balance payment is required by T/T prior to shipment or by irrevocable and non-transferable L/C at sight, to be established at least one month before shipment.
Xiamen Erudite Machinery Co., Ltd is a professional manufacturer specializing in the design and production of roll forming machines and bending/curving machines to serve the metal building industry.
Before the inception of its establishment, Erudite invested and set up its own R & D team to enhance the technologies in design, production and quality control. Erudite has experienced engineers and technicians who have worked in this field of business for over 10 years individually. Erudite can provide customized, accurate and comprehensive design for machinery according to the clients' profile drawings and technical requirements. Erudite has actively invested in research and development, obtained a number of patents, and has been selected as a National High-tech Enterprise in 2021.Erudite equipped with professional production technical management personnel, supporting series supply chain services from design, production, and technical support to after-service. The professional sales team in Erudite is responsible for providing professional recommendation and solutions to clients before sales and after sales to ensure our customers can maximize their investment and meet their production requirements/demands with a fruitful return on investment.
Erudite is willing to be your sincere and trustworthy partner!

---
