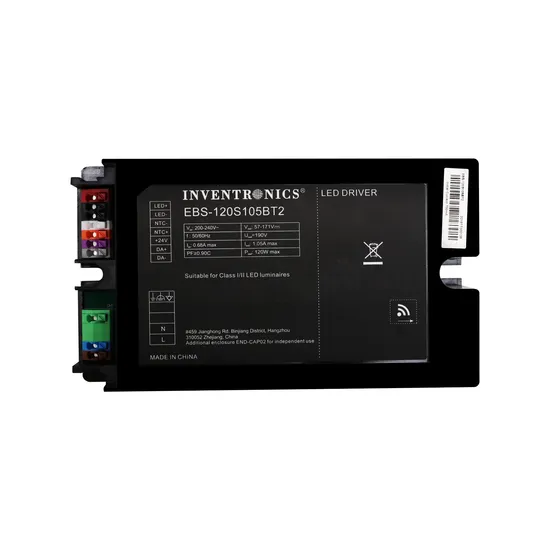

Inventronics High Efficiency 176-305V Long Lifetime LED Driver with Thermal Sensing and Protection for LED Module

Product Description

Model No.	Output Power (W)	Full-power Current Range(mA)	Output Voltage Range (Vdc)	Eff.@ 220Vac	Lifetime (hours)	Dimensions (L*W*H)(mm)
EBS-040S045BT2	40	300-450	44-133	90.50%	110,000 Tc= 75°C	133 x 77 x 33
EBS-040S070BT2		450-700	28-89	90.50%
EBS-040S105BT2		700-1050	19-57	89.50%
EBS-080S070BT2	80	450-700	57-178	92.50%		133 x 77 x 36
EBS-080S105BT2		700-1050	38-114	92.50%
EBS-080S150BT2		1050-1500	27-76	92.00%
EBS-120S070BT2	120	450-700	86-266	94.00%		150 x 85 x 39
EBS-120S105BT2		700-1050	57-171	93.50%
EBS-120S150BT2		1050-1500	40-114	93.00%

Fetaures DALI-2 and D4i Certified
Always-on Auxiliary Power:24Vdc,125mA,3W (Transient
Peak Power up to 10W)
Integrated 16Vdc Bus Power Supply based on DALI-2
Integrated Power Monitoring with High Accuracy up to ±1%
Thermal Sensing and Protection for LED Module
All-Around Protection: IUVP, IOVP, OVP, SCP, OTP
High Efficiency (Up to 94.0%)
Full Power at Wide Output Current Range (Constant Power)
Adjustable Output Current (AOC) with NFC
Input Voltage Range: 176 ~ 305Vac
Output Lumen Compensation
End-of-Life Indicator
Long Lifetime Over 100K Hours at 75°C Case Temperature
Input Surge Protection: DM 6kV, CM 10kV
IP20 Design and Suitable for Outdoor Applications in Luminaires
with IP>54
Suitable for Luminaires with Protection Class I and II
Complies with Zhaga Interface Specification Book 13
8-Year Warranty Descriptions
The EBS-BT2 family are DALI-2 D4i LED drivers that provide OEMs the ability to utilize critical driver information, reduce maintenance and product costs and simplify installation. They are equipped with Inventronics Controls-Ready features of Dim-to-Off and Always-On Auxiliary Power to work with a vast array of lighting control networks. They are suitable for Class I and II luminaires, built-in use and have a Zhaga compatible form factor. They operate at 176-305Vac and supply streamlined production with time-saving wireless programming with a wide output current range. The EBS-BT2 are also equipped with the added features of AC power monitoring, built-in surge protection and output lumen compensation.

---
