Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Certification
GS, CE, RoHS, ISO 9001
Packing Size
1130X570X910mm
Transport Package
Standard Wooden Packing
Specification
900*580*1160mm
Product Description
Product Description
| Turning-parameters | |
| Max. Swing over the bed | 300mm |
| Max. Swing over the tool post | 140mm |
| Max. machining length | 500mm |
| Spindle taper | MT4 |
| Spindle bore | 26mm |
| Max. travel of tail-stock sleeve | 50mm |
| Taper of tail-stock | MT3 |
| Middle carriage travel | 200mm |
| Small carriage travel | 80mm |
| Threads metric pitches | 0.5~3mm/14kinds |
| Threads inch pitches | 11~40TPI/20kinds |
| Transverse feed | 0.05~0.5mm |
| Longitudinal feed | 0.05~0.5mm/2 steps |
| Spindle speed range | 160~1600 r/min 6 steps |
| Motor power | 750w,50Hz |
| Drilling and milling-parameters | |
| Max.Drilling capacity | 20mm |
| Table size | 200x150mm |
| T-slots size | 12mm |
| Z spindle travel | 80mm |
| Spindle taper | MT3 |
| Spindle travel | 80mm |
| Distance from spindle to column guide rail | 175mm |
| Distance from spindle end to table surface | 240~320mm |
| Spindle speeds | 125~1600r/min 12 steps |
| The rotation angle of the drilling and milling box head around the column | 360° |
| Net weight/Gross weight | 200/210kg |
| Overall dimensions | 1160x580x900mm |
| Package Size | 1130x570x910mm |
Product Parameters
The whole machine is 200 kgs, occupies a small area, and has a wide range of applications.
Imported bearings are used to improve service life and accuracy.
CE standard, safe. silent.

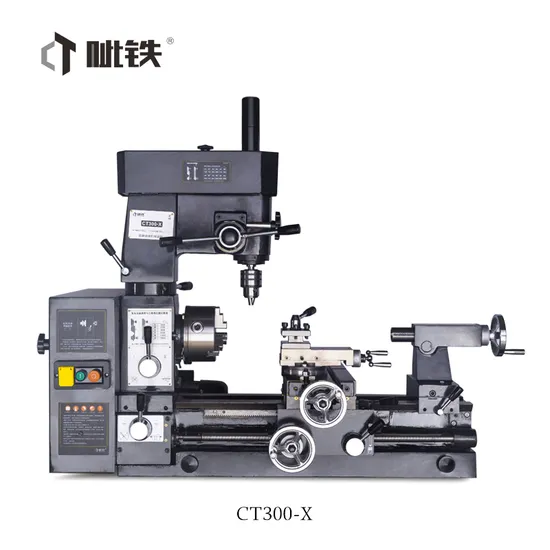

Turning, drilling, and milling three-in-one machine, the drilling and milling head can be raised and lowered, and can be rotated 360°
The lateral feed dovetail guide for turning work is equipped with an adjustable taper insert, which is resistant to wear, and surface contact and has good rigidity.
Adjust the belt position to obtain different speeds;
The push-pull clutch device can switch between turning/drilling and milling freely.
