Product Description

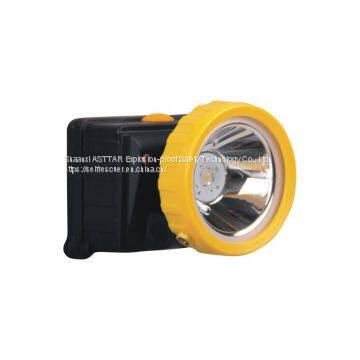

KL2.8LM(A) integrated intrinsically safe mining helmet lights with strobe SOS mode
Main characteristics
1. LED constant current driving mode, it ensures the illuminance keep the same during the lighting.
2. Equipped with built-in micro controller and multiple safety protection circuit, with intelligent management of charge-discharge process, it is safe and reliable.
3. It is dual light source design, which can be one-key switched in five modes: bright light, low light, auxiliary light, strobe and SOS.
4. It has the characteristics of battery power indication, freely adjusting the angle of lamp head, and various ways of wearing.
Technical parameters
Item
| Specification
|
Battery type
| Lithium manganate
|
Rated capacity
| 2.8Ah
|
Rated voltage
| 3.7V
|
Lighting time
| >11h
|
Main light source
| Operating current
| 0.2A
|
Maximum illuminance
( at 3m away from lamp)
| When lighting begins
| ≥4000lx
|
After lighting for 11h
| ≥4000lx
|
Rated power of LED auxiliary lighting source
| 0.2W
|
Life of cap lamp
| >2yrs
|
Charging time
| (6~8)h
|
Explosion proof type
| mine environment
| Ex ia I Mb
|
Gaseous environment
| Ex ia ⅡC T4 Ga
|
Dust environment
| Ex tD A21 IP65 T135℃
|
Protection grade
| IP65
|
Dimensions
| 84×68×71mm
|
Weight
| 0.2kg
|
|
|
|
|
|
Matching information
Standard fittings
| KZC1C charger, headband
|
