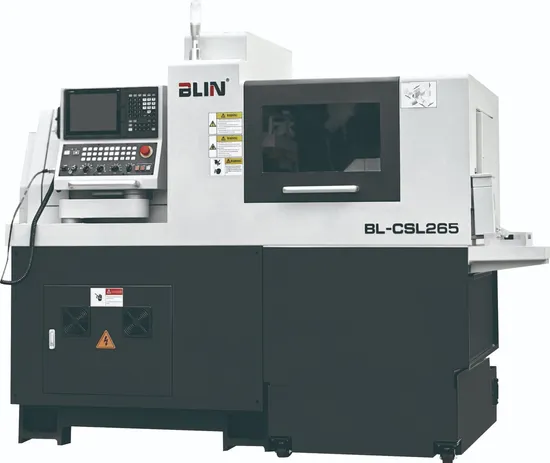

Plywood Case Horizontal Guide Rail Metal Machine Swiss Automatic Lathe

US$41,000.00 39,000 Sets (MOQ)

Basic Info.

Model NO.
BL-CSL265
Type
Swiss Type
Processing Accessory
Centre CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Gang Too
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max. Machineable Bar Dia.
25mm
Main Spindle Bore
27mm
Max. Face Drilling Dia.
10mm
Max. Face Tapping Dia.
M8
Main Spindle Max Speed
8000rpm
Main Spindle Motor
4.2kw
Main Spindle Index
C Axes(Continuation)
Back Spindle Max Speed
8000rpm
Back Spindle Motor
3.1kw
Back Spindle Index
C Axes(Continuation)
Radial Type Live Tool Max Speed
5000rpm
Rapid Moving Speed(X1/Y1/Z1/X2/Z2)
20/24/24/24/24
Repeat Popsitioning Accuracy
0.003
O.D. Tool
6 Position
Transport Package
Plywood Case
Specification
2300*1300*1750
Trademark
BLIN
Origin
China
HS Code
8458110090
Production Capacity
480 Unit/Year

Packaging & Delivery

Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg

Product Description

Double spindle Swiss Automatic machine lathe
- Dual spindle,total 5 axes
- Adopt TAIWAN technology,most parts adopt GERMANY/JAPAN/TAIWAN brand
- Adopt meehanite resin sand cast iron, after aging treatment, small distortion, good heat stability and high rigidity
-Adopt high precision built-in electro-spindle,NSK super high precise angle contact ball bearing, achieve spindle's high rigidity
and good precision retention,spindle flop≤2μm
- Adopt JAPAN THK brand high precision ball screw and linear guideway
- Adopt gang type tool, can achieve turning/milling/drilling etc combined machining by side-mounted live tool and C axes
- After mount automatic bar feeder, can realize automatic machining
- Suitable for complex, small-sized,precise,slender axles workpiece machining
Details:
Item Unit BL-CSL205 BL-CSL265
Max. machineable bar dia. mm Φ20 Φ25
Main spindle bore mm Φ25 Φ27
Max. machineable length Fixed guide bushing mm 200
Rotary guide bushing mm 180(one time feed)
Guide bushless mm 50
Max. face drilling dia. mm Φ10
Max. face tapping dia. mm M8
Main spindle max speed rpm 8000
Main spindle motor kw 4.2
Main spindle index / C axes(continuation)
Back spindle max speed rpm 8000
Back spindle motor kw 3.1
Back spindle index / C axes(continuation)
Radial type live tool max speed rpm 5000
Rapid moving speed(X1/Y1/Z1/X2/Z2) m/min 20/24/24/24/24
Repeat positioning accuracy mm ≤0.003
O.D. tool mm 6 position 12*12
Main spindle side axial drilling tool(fixed type) mm 4 position ER16
Main spindle side radial type live tool mm 2 position ER11+2 position ER16
Back spindle side back drilling tool(fixed type) mm 4 position ER16
Coolant pump kw 0.46
Overall size mm 2300×1300×1750
N.W. kg 2500 2600

Main parts list:
Item Brand
CNC controller TAIWAN-SYNTEC
Servo electro-spindle TAIWAN
Servo motor&driver TAIWAN-SYNTEC
Spindle encoder TAIWAN-SYNTEC
Spindle bearing JAPAN-NSK/NTN P4 class
Ball screw bearing JAPAN-NSK/NACHI
Ball screw TAIWAN HIWIN/JAPAN-THK
Linear guideway TAIWAN HIWIN/JAPAN-THK
Lubrication system JAPAN-HERG
Main electricity parts FRANCE-SCHNEIDER
Pneumatic parts TAWAN-AIRTAC
Lock nuts TAIWAN-YINSH
Shaft coupling GERMANY-KTR

Standard configuration: - SYNTEC 220TB CNC controller - Rotary guide bushing - Dual spindle - Parts catcher& convey belt Optional configuration: - High pressure coolant system - Oil mist collection system - Angular live tool - Automatic chip conveyor - Automatic bar feeder Other models choice:
