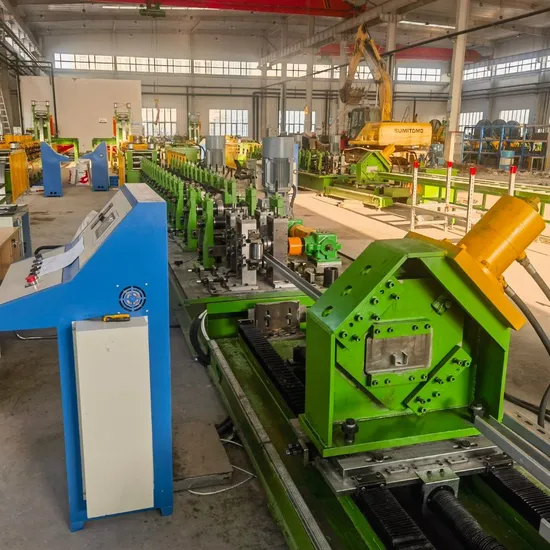

Solar Panel Steel Bracket Roll Forming Machine Photovoltaic Roof Steel Strut Roll Rolling Mill

Product Description

Solar Panel Steel Bracket Roll Forming Machine Photovoltaic Roof Steel Strut Roll Rolling Mill
We main research & development and manufacturing cold bending roll forming machines since 1991.
If you supply for photos of steel products and technical drawings, we can make it to order and meet your requirements.

Main Technical data
No.	Item	Parameters
1	Model	LL-80-18ST
2	Suitable material	Galvanized steel & Cold rolled steel sheet
3	Thickness	1.8-3.0mm
4	Total Speed	About 22~35 m/min
5	Total power	About 179 KW
6	Cutting Type	Servo flying cutting
7	Forming step	18 steps
8	Dia. of shaft	¢70mm
9	Shaft	thermal refining HN250-280
10	Driving method	Commutator drive; Soft coupling output.
11	roller	Cr12Mov, Salt bath quenching HR58-62
12	Reducer	K87 series reducer
Main components list -- Whole Line
No.	Item	Unit	Qty
1	Decoiler	Set	1
2	Storage material turntable	Set	1
3	Punching device	Set	1
4	Roll Forming machine	Set	1
5	PLC	Set	2
6	Hydraulic station	Set	2
7	Cutting device	Set	1
8	Collector	Set	1
Production process flow chart:
Uncoiling → Leveling → pre punching → roll forming → servo flying cutting → collection

C Steel Purlin Roll Forming Machine Production Line,22~32m/min include punching Other Solar Tracker Steel Purlin Roll Forming Machine Production Line 1.U41 series Steel Purlin Roll Forming Machine Production Line
32~42 M/Min with on line punching
It can produce U41*41/52/62/72, 4 dimensions in one machine. 2. C Steel Purlin Roll Forming Machine Production Line,23~28 m/min with on line punching 3.C/U Auto-Adjustable roll forming machines
Web From 50mm to 160mm by electrol PLC control change automaticlly,
Flange 30~65mm also by elteric PLC control change automaticlly,
No noeed to change any forming rollers.
22~26 M/min with on line punching!
Save time and high efficiency! 4.Hat Profile Roll Forming Machine Production Line,22~28 m/min with on line punching
1.2mm~2.0mm, any shapes Hat profile machines can be customized! 5. M Profile Roll Forming Machine Production Line,20~25 m/min with on line punching
1.5~2.5mm M steel machine and 2.5~4.0mm M steel machine can be customized! 6. Z Profile Roll Forming Machine Production Line,20~25 m/min with on line punching
1.5~2.5mm Z steel machine and 2.5~4.0mm Z steel machine can be customized!
Other 0.2~ 6.0 mm roll forming machines: Successful project Advantage 1.We are manufacturer and have export entitlement.
2.We have more than 30 years' experience, our products have been exported to more than 80 countries all over the world.
3.We supply manufacturing, design, installation, after-sales and other services. FAQs 1.Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.
We need your machines running in order to keep your business running.
2.How to visit your company?
a. Fly to Beijing airport, we can pick up you.
b. Fly to Tianjin Airport, we can pick up you.
3.How to get a quotation?
a. Give me the profile drawing and thickness, this is the important. If no, I will suggest you some.
b. Other specific requirements are welcome, such as the speed, power and voltage you want.
4.You are trade company or factory?
We are factory. Welcome to our workshop for visiting.
5.Can you be responsible for transport?
Yes, please tell me the destination port or address. We have rich experience in transport.
6.How long the machine could be made?
Normally speaking, common roll forming machine could be made within 45 working days.
If you need machines in a hurry, we can make it for you less than a month.

---
