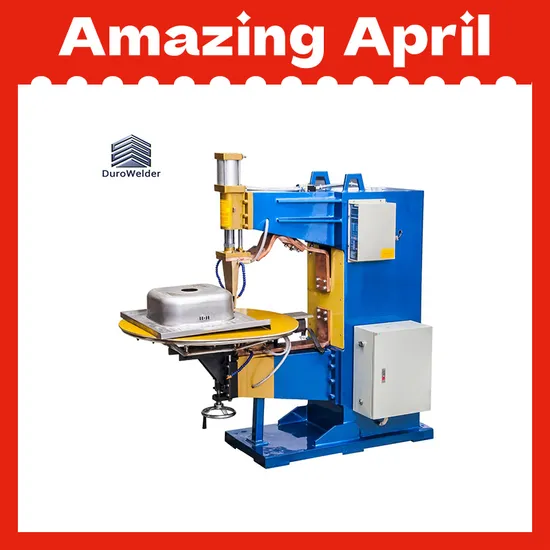

Automatic Rolling Tank Sink Barn Steel Plate Seam Welding Machine

Product Description

Machinery Characteristics:
1. There is two standard models: Transversal Seam Welding Model and Longitudinal Seam Welding Model.
2. Also one machine can be used as both transversal seam welding and longitudinal seam welding, only need to change the direction of upper seam wheel head and change the lower welding head and welding arm within minutes.
3. Driven one head and free the other head. The two seam wheels have the same tangential speed.
4. Widely used in hardware, appliances, automotive, manufacturing pots, can, fuel tank, tank producing and other metal manufacturing and processing industries.
Main Technical Parameter

Item Model	Rated Capacity	Rated Primary Voltage	Rated Frequency	Maximum Short Current	Electrode Stroke	Welding Speed	Electrode Pressure	Motor Power Source	Motor Power	Cooling Water Flow	Weight
	KVA	V	Hz	A	mm	M/min	KN	V	W	L/min	Kg
FN-50	50	380	50/60	16000	50	0.6-4	2.5	3-380V	90	30	500
FN-75	75	380	50/60	19000	50	0.6-4	3.9	3-380V	150	30	650
FN-100	100	380	50/60	22000	50	0.6-4	4.7	3-380V	150	30	880
FN-150	150	380	50/60	29000	50	0.6-4	6.1	3-380V	150	30	1050
FN-200	200	380	50/60	35000	50	0.6-4	6.1	3-380V	150	30	1250

If you want to know more information or have any questions, please contact us without hesitation!

Sales rep:Mr.Kyle Xu

---
