High Speed Hot/Cold Plastic PVC Powder Mixer Unit Horizontal Model SRL-W300/1000L Mixing Drying Coloring Equipment with Capacity 500kg/H

Product Description

Product Description
CE approved Zhangjiagang city Beierman Machinery PVC powder high speed hot/cool mixing unit specially designed for the plastic mixing,drying, coloring.
there are different models,
vertical type model such as :
SRL-Z200/500,SRL-Z300/600,SRL-Z500/1000,SRL-Z800/1600,etc.
Horizontal type model such as:
SRL-W300/1000, SRL-W500/1600, SRL-W800/2500, SRL-W1000/3000,etc.
- high speed mixing motor inverter started
- high speed parts 3 methods temperature increasing: material self-friction/electric heating/conduction oil heating
- material discharge 2 methods: temperature controller automatic release/mixing time control
- the parts contact with raw material are all made of stainless steel 304 and mirror polishing treatment
- the barrel covers and three direct links made of cast aluminum
- the bearing chambers with special designs for the lubricating oil injection
- driving motor over current protection design
- PLC touch screen control system can be choosed for the high automatic control requirement
- special designed mixing axis design can avoiding the raw material leaking from the barrel
- mixing paddles after strict balance test.

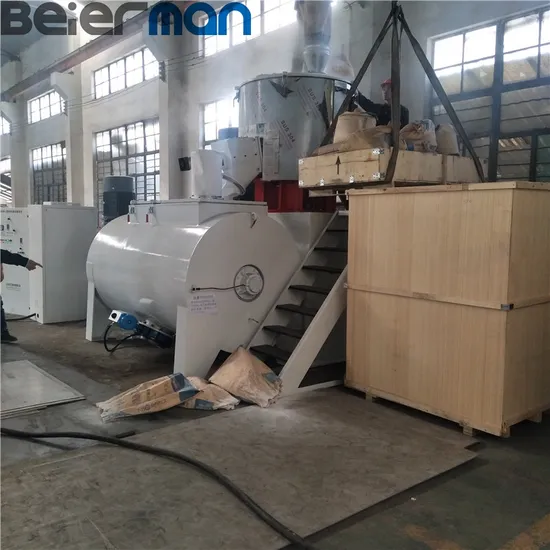

SRL-W300/1000 horizontal mixer unit, heat mixer 55KW, cold mixer 7.5KW.
photos for your reference
Packaging & Shipping
Company Profile
- BEIERMAN MACHINERY was established by three skilled technician/engineer/sales for plastic extruding line, plastic recycling lines producing, sale and services.
- We have 3000 square meters working house for machines making, there are 40 workers for machines producing and a 5 engineers service team for the machines running test, installation, workers training and machines repairmen.
- we have already get CE certificate for our machines and factory, which ensured the high quality level of all machines we are producing
- we will attend several home and abroad plastic machines industry fairs to show the customers our quality, machines and services.
- there will be 1-2 new produced machines will be showed to the customers every year.
- we already established cooperation with the customers from Middle East, Southeast Asia and south America countries.

We Beierman Machinery can supply major machines as below 16items:

1,Mixing unit (Vertical , or Horizontal),high speed mixer~~~for PVC powder; Ribbon mixer, low speed mixer~~~for plastic; Hopper dryer mixer~~~for plastic granules; Color mixer~~~for plastic granules. 2, PC LED light diffuser,bottom tube making line. 3, PVC Supermarket Price tag profile production line; Soft seal production line; Rigid rod production line. 4, PE MBBR porous filter tube production line. 5, PPH pipe production line. 6,Single screw extruder; 7,Conical twin screw extruder; 8, 2layer; 3 layer;4 layer PPR pipe co-extrusion line; PPR, PE, HDPE, PE-RT pipe production line; 9, Corrugated pipe extrusion line (Single wall corrugated; Double wall corrugated); 10, 3 layer PVC pipe co-extrusion line; PVC pipe production line; 11, PVC 2 cavity pipe production line; 12, PVC 4 cavity pipe production line; 13,Pipe belling machine; 14, PVC rain gutter/WPC trunking panel production line; 2 layer PVC profile co-extrusion line; 15, Granulating line (PP PE ); 16, Granulating line (PVC).

After Sales Service
Pre-sales services
we will take customers to visit our factory and check the machines quality from airport/bus station/train stations
- we will re-designed the machines according to customer's different raw material formulations: driving motors power, electric power model, wall thickness of barrel, control method
After-sales services we will offer electric diagram, installation diagram, usage manual
- we will offer the customers online introduction to solve the machines problems/send engineers for customers machines installation, running test, workers training, machines repairmen services.
- we will offer customers spare parts at cost prices all life long of the machines.
