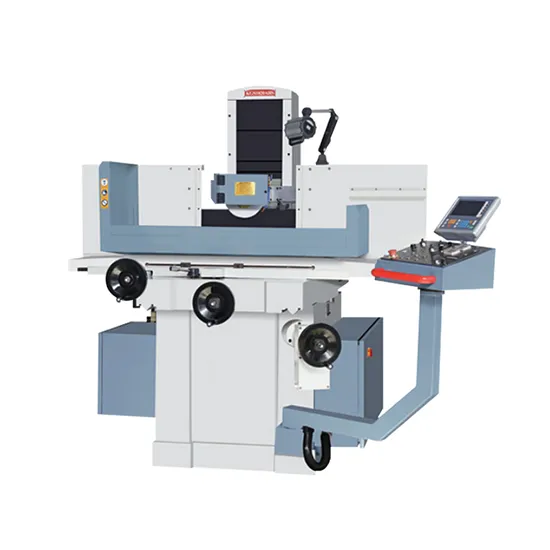

Kent High Precision Vertical Spindle Saddle Moving Grinder Surface Grinding Machine

Product Description

Product Description
Key Specifications/Special Features:
Characters: X hydraulic and Y/Z motorized
Standard equipment: Coolant tank, elector magnetic chuck, wheel dresser base, flange and wheel extractor, standard wheel, balance arbor, working lamp, leveling wedge and foundation bolt
Longitudinal travel: 650mm
Cross traverse: 240mm
Distance between table and spindle center: 450mm
Working surface: 600x200mm
Primary Competitive Advantages:
Brand-name Parts
Country of Origin
Distributorships Offered
Electronic Link
Experienced Staff
Form A
Green Product
Guarantee/Warranty
International Approvals
Packaging
Price
Product Features
Product Performance
Prompt Delivery
Quality Approvals
Reputation
Service
Small Orders Accepted
Main Export Markets:
Eastern Europe
North America
Mid East/Africa
Central/South America
Asia
Western Europe
Australasia

		13915	13916	13917	13918
Model		M400	M300	M250	M200
Longitudinal travel	mm	800	660	510	650
Cross traverse	mm	350	370	270	240
Distance between table&spindle center	mm	400	450	450	450
Working surface	mm	775x325	600x300	500x250	600x200
Table speed up to 15m/min	m/min	7-25	5-25	5-25	5-25
L.C.Of cross feed hand wheel 10μ	μ	20	20	20	20
L.C.Of vertical feed hand wheel 2μ	μ	5	5	5	5
Auto cross feed at each table reversal	mm/stroke	0.25-6	0.25-6	0.25-6	0.25-4
Grinding head
Size of wheel	mm	250x250x76.2	250x25x31.75	200x20x31.75	250x25x31.75
Spindle power	hp	5	3	4	3
Grinding spindle speed	rpm	2850	2850	2850	2850
Hydraulic pressure motor	hp	2	2	2	2
Overall size	mm	235x185x190	216x165x190	195x150x190	213x150x190
Weight	kg	2600	2100	1800	1700

Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future
