9 Meters High Maintenance Equipment Electric Scissor Lift

Product Description

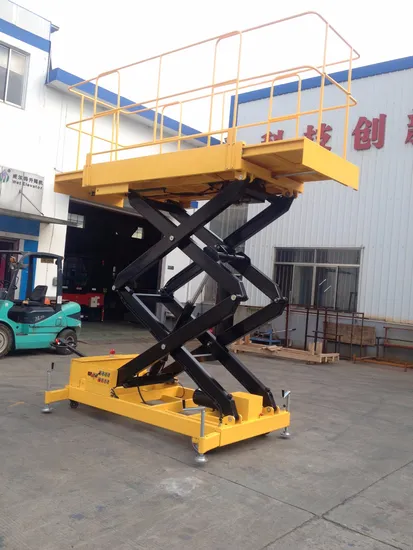

Self-propelled Scissor Lift
Application:Aerial working with heavy loading
Max height of platform:6m,7.5m,9m,.11m,12m,14m,16m for option
Features: 1.Made of wide section manganese steel providing more stability
2.when lifting Inching control for lifting and lowering, ground / platform control mode could be switched.
3.Control voltage: DC 24V
4.Equipped emergency lowering device, enable safe lowering when power off
5.Double contactors and double limit switches are provided
6.In chassis is slide-out engine tray, convenient for maintenance
7.Forklift pockets are made for transportation
8.With self-propelled device,easy steering
Standard Configuration
1.AC380V
2.Emergency Lowering valve
3.Leveling device with supporting screw
4.Waterproof electric box
5.Emergency stop button
Optional Configuration
1.AC220V(For Max 12m platform),DC
2.AC-DC,manual hydraulic pump
3.Italian hydraulic system
4.Explosion proof electric control system
5.Rubber solid tire
6.Extension platform
7.Electric moving device

Parameters
Model	SJY0.45-6	SJY0.45-7.5	SJY0.45-9	SJY0.45-11	SJY0.45-12	SJY0.45-14	SJY0.3-16
Max Platform height(mm)	6000	7500	9000	11000	12000	14000	16000
Min Platform height(mm)	980	1250	1500	1600	1700	1800	1980
Platform Size(mm)	1850*880	1800*1000	1800*1000	2100*1150	2450*1350	2450*1350	2700*1500
Rated Load(kg)	450	450	450	450	450	450	300
Lifting times(s)	54	72	83	88	90	120	130
Voltage(V/Hz)	380/50	380/50	380/50	380/50	380/50	380/50	380/50
Travel motor power(Kw)	0.75	0.75	0.75	0.75	0.75	1.2	0.75*2
Travel speed(Km/h)	6	6	6	6	6	6	6
Gradeability	5	5	5	5	5	5	5
Wind resistance(degree)	<6	<5	<5	<5	<5	<5	<4
Motor power(Kw)	1.1	1.5	1.5	2.2	3	3	3
Overall length (mm)	2000	2000	2000	2250	2600	2600	2850
Overall width (mm	1080	1200	1200	1350	1550	1550	1750
Overall height (mm)	980	1250	1500	1600	1600	1800	2000
Extended outrigger size(mm)	600	700	700	700	700	800	800
Over weight(kg)	720	1170	1330	1450	1920	2570	2750

Product Details
Our Company
Boonai (Suzhou) Lift Equipment Co. Ltd as a modern manufacturing enterprise is specialized in aerial work platform, providing package service for design, production, sales and after-sales.
There is an experienced team that takes care of every process for design, production and quality control and dedicated to providing the clients with excellent work.
With business philosophy of "Quality First, Client Oriented", we are striving for building a reputable brand of Boonai by following the steps of the giants for the innovation of products and the improvement of process and pursuing the perfection on every detail.
Main products are as follows: mast aerial work platform, scissor lift, fixed lift table, car lift and material picker as well as electrical aerial work platform, with a wide application for the fields as machinery, military, aviation and logistics etc.
A sophisticated sales net has been built for domestic market and shall be expanded beyond with our products accessing the market of North America, North Europe and Middle East etc.

---
