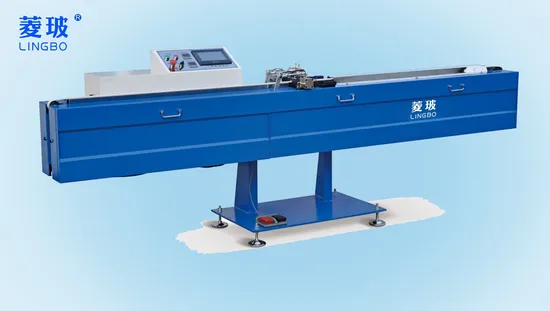

Butyl Sealing Machine for First Primary Sealant Sealing in Insulating Glass Processing

Product Description

Product Description
Introduction of Butyl Sealing Machine for First Primary Sealant Sealing in Insulating Glass Processing
1.PLC control system with humanized touch screen interface.
2.Numerical controlling butyl start and stop time
3.Automatic displaying function when no butyl
4.Hydraulic pressure using pneumatic-hydraulic change driving system
5.Automatic Adjustment for different spacer width.
6.Preheating function makes operation more friendly
7.Available for curved spacer extruding
Product Parameters

1	Power Supply	1P+N 220V / 3P 380V 50Hz 3.45kW
2	Extruding Pressure	15~20MPa
3	Extruding Temperature	110ºC~140ºC
4	Butyl Heating Time	0~30m/min
5	Sealing Speed	0~30m/min
6	Air Pressure	0.5-0.8MPa
7	Sealant Head Adjust Scope	6-18mm; max 30mm (OPTIONAL);
8	MIN glass size	280x450mm
9	Sealant Cylinder	φ200mm
10	Working Altitude	800mm
11	Machine Size	3000mm (L)×620mm (W)×1102mm (H)
12	Machine Weight	480kg

Detailed Photos
Detailed Photos of Butyl Sealing Machine for First Primary Sealant Sealing in Insulating Glass Processing
Certifications
Butyl Sealing Machine for First Primary Sealant Sealing in Insulating Glass Processing Certificates
Company Profile
Our Customers
Packaging & Shipping

Dear Friends,
If any interst on Automatic Silicone Structure Sealant Spacer Butyl Extruder Machine, Argon Gas Online Filling Machine more than 90%
Sealing Robot, Sealing machines, CNC Glass Cutting Machine,and the complete line related the glass deep process machines,
Please feel free to connect us,
Wish to cooperate with you for long time,
Regards, Megan

---
