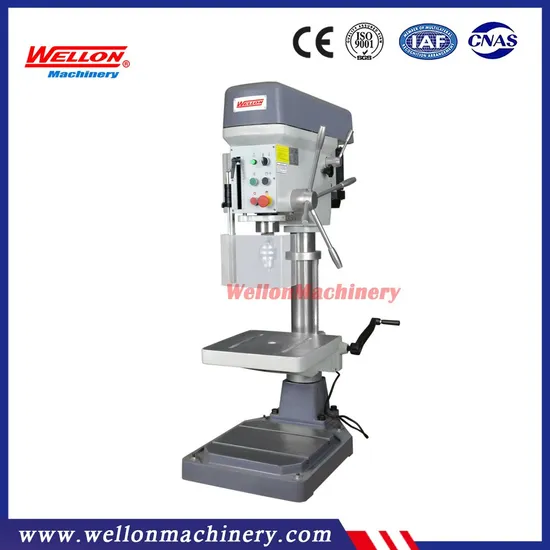

Bench Type Drilling Machine Z4116G/Z4113G Drill Press Machine

Product Description

Product Description
Detailed Photos
Product Parameters

Performence Features:
1.Attractive & pleasing design,reasonable structure
2.Long spindle travel,wide machining range
3.With multi-functional
4.Worktable can be 360 rotation
Technical parameter:

Model	Z4116G/Z4113G
Max.Drilling capacity	φ16/φ13
Max.Tapping capacity	M12/M10
Diameter of column	70mm
Spindle travel	130mm
Distance spindle axis to column	193mm
Max.Distance spindle nose to table	330mm
Max.Distance spindle nose to base	613mm
Spindle Taper	MT2/B16
No. of Speeds	5speeds
Spindle speeds range	320~2730r/min
Dimension of workable surface	265x285mm
Dimension of base	360x480mm
Overall height	1130mm
Motor	0.55KW(6P)
wellonmachinery.en.made-in-china.com weight	145kg
Packing size	850x540x1282mm

Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical
MachiningCenter ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price
and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
