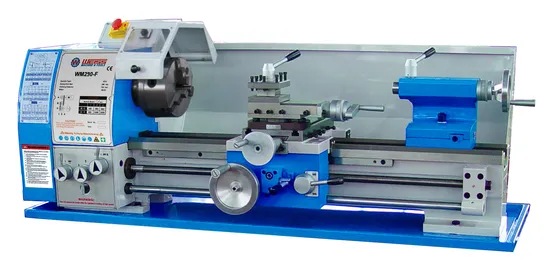

Weiss Bench Lathe Wm290V-F with Various Speed

Product Description

Notification: Weiss has updated the WM290V-F to WBL290F, kindly click the the photo as followed for our latest generation:
SPECIFICATIONS

WEISS MODEL	WM290V-F
ITEM NO	10101295/10102295
Distance between centers	700mm
Swing over bed	Ø280mm
Swing over cross slide	Ø165mm
Width of bed	180mm
Taper of spindle bore	MT5
Spindle bore	38mm
Number of spindle speeds	Variable
Range of spindle speeds	125-2000/50-1800rpm
Range of cross feeds	0.017-0.12/r
Range of longitudinal feeds	0.07-0.65mm/r
Range of inch threads (imperial version)	8-56 T.P.I
Range of metric threads (metric version)	0.2-3.5mm
Top slide travel	60mm
Cross slide travel	140mm
Tailstock quill travel	80mm
Taper of tailstock quill	MT3
Motor (brushless)	750W(AC)/1.1KW(DC)
Machine size	1300x550x500mm
Packing size	1400x680x700mm
Net weight	230kg

Standard Accessories

160MM 3-JAW Chuck

Chip Tray

Splash Guard

Toolbox and Tools

Optional Accessories

Steady Rest

Follow Rest

Face Plate

4-Jaw chuck 125mm

Backplate for 4 jaw chuck

ER32 coller fixture

Threading Diail

2-Axis DRO (Magnetic Scales)

3-Axis DRO (Magnetic Scales)

Stand

Luxury Stand

Quick chage Tool Post (TOOA1)

Turning Tools

Change Gear: Equipped with protective QKS8 door swtich,
All metal gears
Providing 21 kinds of inch threads and 12
kinds of metric threads cutting
Gearbox:Separate leadscrew and feed rod, 3 kinds of feeding speeds Tailstock:with quick lock handle,drive hub,draw-down alignment

3-Jaw Self-centering Chuck Power longitudinal & cross feed Guideway induction hardened, precision ground

4-Way Tool Post Cross Slide with T-slot Table Metric/ Imperial Threading Dial
Tool& Toolbox
Factory and Delivery
Certificate
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offer professional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc.
3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation.
4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machine as well.

---
