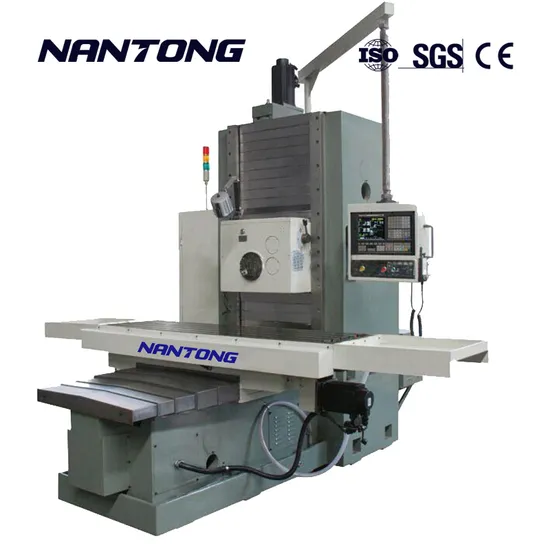

Automatic Power Feed CNC Horizontal Milling Machine Made in China

Product Description

Machine Property
1.High speed
2.High quality
3.Easy operation
4.High safety
Machine Parameters

Project	Unit	XK1332	XK1740	XK1850	XK2250
Working Table Area(L*W)	mm	1300*320	1700*400	1800*500	2200*500
T-solt Size	mm	90*18*3	90*18*3	90*18*5	90*18*5
X/Y/Z Travel	mm	800/400/500	1000/400/500	1200/550/600	1600/550/600
Spindle Speed	rpm	50-1430	50-1430	50-1430	50-1430
Spindle Taper		NT50	NT50	BT50	BT50
Shafts connect Threads Type		M24	M24	M24	M24
Spindle nose to Working Table	mm	50-550	50-550	50-650	50-650
Spindle axis to Column	mm	550	550	650	650
Max Movement Speed(3 axis)	mm/min	5000	5000	5000	5000
Positioning Accurate	mm	0.02	0.02	0.02	0.02
Repeat Positioning Accurate	mm	0.01	0.01	0.01	0.01
Mini setting unit(3 axis)	mm	0.001	0.001	0.001	0.001
Working Table Load	kg	800	1000	1500	1500
CNC System		GSK	GSK	GSK	GSK
Servo motor	kw	2.2, 2.2, 2.2	2.2, 2.2, 2.2	4.6,4.6,2.2	4.6,4.6,2.2
Main motor	kw	7.5/11	7.5/11	7.5/11	7.5/11
Lubrication Motor	w	200	200	200	200
Cooling pump Motor	w	125	125	125	125
Pneumatic Lock tool		Optional	Optional	Optional	Optional
Machine weight	kg	3800	4500	5600	6500
Machine dimensions(L*W*H)	mm	2300*2100*2600	2500*2100*2600	2600*2700*3000	3200*2700*3000

Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Nantong YIJI Machinery Co., Ltd was founded in 1988,which specialized in manufacturing move column cnc machine center, floor type boring machine, cnc gantry milling machine, automatic solution and professional machine tools. Nantong YIJI Machinery Co., Ltd has integrated business concept of "Quality is essence, excellence, full participation", and constantly casting and enhance the "YIJI" machine Brand quality. Relies on Specialized design, mature production workman ship, Strict QC Management, quick integrated solution, nice after service and has won trust from vast customers. Our market share has been expanded .Our products with more varieties, full range ,have enjoyed good sales to the 30 countries in Europe, America, Southeast Asia. And Have won good reputation So far. Our company has enjoyed import/export rights, obtained export product license, CE certificated and Passed ISO9001 quality system certification.

Innovation is endless. Techniques Change future. We will like to supply you our professional technology, quality machines and best service.
Our Service
Warranty & After-sale service
1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products' warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.
Welcome your inquiry!

---
