Product Details
Product Description
Product Description

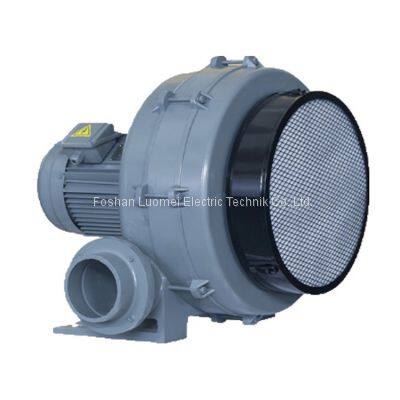

Centrifugal Blower Functional Features:
1. Light weight high pressure big volume low noise.
2. Aluminum alloy material, greatly reduce weight, achieve the goal of lightweight.
3. Design ( 1 HP motor for I . E. C above ) , full close outer fan type aluminum frame,
motor axis of special design, can be suitable for long time use.
4. Special blade design, high pressure, big air volume, low noise, long service life.
5. Special air damper, air volume control stability is high, easy to operate (CX) TB) HTB applicable
HTB Serise Vortex Blower Application:
1. Printing Machines
2. Burning Machines
3. Plastic Extruders, Laminating, Film Making Machines
4. Uniform Temperature Equipment
5. Household Machines
6. Dust Collectors
7. Textile Machines
8. Pollution Machines
9. Hot Air Blowers
10. Dryers Machines
11. Incinerators
12. Machinery for the Food and Beverage Industries
13. Machinery for Cooling
14. Woodworking Machines
15. Grain Elevators
HTB75-032, 3 phase, 0.4KW, 220V or 380V, max airflow 6m3/min@50Hz/7m3/min@60Hz, max pressure 2.1kpa@50Hz/2.6kpa@60Hz, inlet 75mm outlet 75mm, 17KG
HTB75-053, 3 phase, 0.4KW, 220V or 380V, max airflow 6.5m3/min@50Hz/7.5m3/min@60Hz, max pressure 2.9kpa@50Hz/3.8kpa@60Hz, inlet 75mm outlet 75mm, 19KG
HTB75-104, 3 phase, 0.4KW, 220V or 380V, max airflow 6.5m3/min@50Hz/8.0m3/min@60Hz, max pressure 3.7kpa@50Hz/5.0kpa@60Hz, inlet 75mm outlet 75mm, 24KG
HTB75-105, 3 phase, 0.75KW, 220V or 380V, max airflow 6.8m3/min@50Hz/8.5m3/min@60Hz, max pressure 4.2kpa@50Hz/6.0kpa@60Hz, inlet 75mm outlet 75mm, 28KG
HTB100-102, 3 phase, 0.75KW, 220V or 380V, max airflow 11m3/min@50Hz/13m3/min@60Hz, max pressure 3.4kpa@50Hz/4.5kpa@60Hz, inlet 100mm outlet 100mm, 26KG
HTB100-203, 3 phase, 1.5KW, 220V or 380V, max airflow 11m3/min@50Hz/14m3/min@60Hz, max pressure 5.0kpa@50Hz/7.0kpa@60Hz, inlet 100mm outlet 100mm, 37KG
HTB100-304, 3 phase, 2.2KW, 220V or 380V, max airflow 12.5m3/min@50Hz/16m3/min@60Hz, max pressure 6.5kpa@50Hz/9.0kpa@60Hz, inlet 100mm outlet 100mm, 43KG
HTB100-505, 3 phase, 3.7KW, 220V or 380V, max airflow 12.8m3/min@50Hz/16.5m3/min@60Hz, max pressure 7.9kpa@50Hz/11.0kpa@60Hz, inlet 100mm outlet 100mm, 57KG
HTB125-503, 3 phase, 3.7KW, 220V or 380V, max airflow 19m3/min@50Hz/23m3/min@60Hz, max pressure 5.8kpa@50Hz/7.9kpa@60Hz, inlet 125mm outlet 125mm, 60KG
HTB125-704, 3 phase, 5.5KW, 220V or 380V, max airflow 20m3/min@50Hz/24m3/min@60Hz, max pressure 7.5kpa@50Hz/10.5kpa@60Hz, inlet 125mm outlet 125mm, 84KG
HTB125-1005, 3 phase, 7.5KW, 220V or 380V, max airflow 20m3/min@50Hz/24m3/min@60Hz, max pressure 9.0kpa@50Hz/13.0kpa@60Hz, inlet 125mm outlet 125mm, 101KG
HTB200-1502, 3 phase, 11KW, 220V or 380V, max airflow 52m3/min@50Hz/65m3/min@60Hz, max pressure 7.0kpa@50Hz/9.0kpa@60Hz, inlet 200mm outlet 200mm, 150KG
HTB200-1503, 3 phase, 15KW, 220V or 380V, max airflow 56m3/min@50Hz/70m3/min@60Hz, max pressure 8.0kpa@50Hz/10.0kpa@60Hz, inlet 200mm outlet 200mm, 170KG
