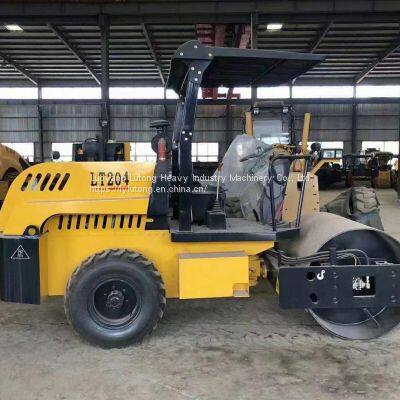

LT204 is a self-propelled, single-drum, fully-hydraulic vibratory roller which is especially developed for the Southeast Asian market, with high exciting force, high compaction efficiency, good compaction quality etc. It is widely used in the compaction of base layer, subbase layer and rock fill on forestry roads, railways, highways, airports, ports, dams and industrial construction sites.
Overall dimension
| mm
| 4040×1500×2560
|
Operating mass
| Kg
| 4000
|
Travel speed
| Km/h
| Speed (1) 2.4/ Speed (2) 6.0
|
Rated power/model
| Kw
| 36.8/Sida Power SD4DW3D
|
Rated speed
| r/min
| 2400
|
Ground clearance
| mm
| 260
|
Grade ability
| %
| 30
|
Turning angle
| °
| 30
|
Vibration amplitude
| mm
| 0.5
|
Vibration frequency
| Hz
| 46
|
Centrifugal force
| KN
| 45
|
Vibration round width
| mm
| 1280
|
Wheelbase
| mm
| 2200
|
Turning radius
| mm
| 4965
|
This product is continuously improved with technological progress. The difference between the above listed parameters and structural characteristics and the actual product shall prevail in the actual product.
